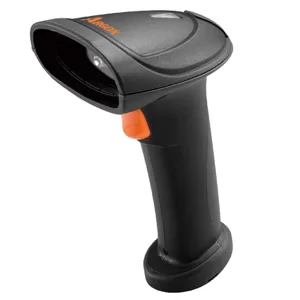

Argox AI-6801 Barcode Scanner in Jessor

Precision & Efficiency: Rapid reading speed at 700 scans per second. Three times the data transmission speed comparing to other scanners in its class. Excellent performance: Processing up to 3mil resolution barcode readability. Electronic Device Readable: Linear imagers overcome the electronic scanning problem. Support all types of electronic devices. such as mobile phones, tablets, and LCD displays. Ruggedized: Industrial grade IP65 dust and water resistance with 1.8 meters safe drop distance protection. It will withstand sudden drops and a variety of collisions. AI-6801 will remain stable operation whether you use it for the outdoor or dusty environment. Data Collection Mode: Support Data Collection Mode for batch scanning (7KB)

AI-6801 is the first rugged 1D linear scanner in Argox. Industrial grade IP65 dust and water resistance with 1.8 meters safe drop distance protection. It will withstand sudden drops and a variety of collisions. Unlike the stand design and look of industrial barcode scanners, AI-6801 has a more slick and ergonomic design for function, and aethetic.AI-6801 is compatible with standard 1D linear barcode, it also removes any reflection interference from the LCD display. Under Presentation-mode can also reduce the inconvenience while you are in the retail or packaging.AI-6801 has a high-density resolution that can capture the code on 3mil barcode such as jewelry tag. To achieve more efficiency you want, the scan process is only in 0.0012 seconds.AI-6801, with a long DOF designed that is capable of capturing 1D barcode in long distances. That will be suitable for retail, warehousing, and logistics industry. The era of Big Data is coming, AI-6801 comes with DataMagic data editing software to enhance your usability. It takes no time to complete the set with the user-friendly UI design; you will be able to complete the data analysis in no time.

Light Source
625nm Visible Red LED
Image Sensor
2500 pixel CCD
Depth of Field
Code 39 3mil 65-80mm, Code 39 4mil 70-90mm, Code 39 5mil 65-110mm, Code 39 10mil 55-280mm, Code 39 13mil 55-370mm, Code 39 20mil 60-520mm, EAN 13mil 55-310mm
Resolution
3mil (Code 39)
Print Contrast Ratio
(minimum)15%
Decode Capability
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited)
Wireless Communications
BT class1 Version 2.1+EDR 100 meters range
Communication Interface
USB, RS-232
Scan Indicators
LED, Beeper and Vibrator
Scanner Dimensions
94mm x 76mm x 158mm
Cradle Dimensions
130mm x 88mm x 95mm
Input Voltage
5V+/- 5%

Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage
-20°C to 70°C (-4°F to 158°F)
Humidity
5% to 95% related humidity, non-condensing
Ambient Light
Up to 100,000 lux
Battery
Rechargeable 3.7 V 2200mAh, li-ion Battery
Drop Resistance
Scanner 1.8m Cradle 0.9m
Programming Method
User Manual setting barcode, Windows ScanUtility configuration program
Operation Mode
Handcuff mode, Data collection mode, Deep-sleep mode, Auto-sensing mode
Sealing
IP65
Program Upgrade
Enabled by build-in flash memory
Cable Length
1.8m
Scanner Stand
Optional
Power Supply
Optional
Agency Listing
CE, FCC, ROHS, BSMI
Attention
*Argox reserves the right to enhance and modify the specification without prior notice. Please check the Argox sales representative for the most updated specifications.
