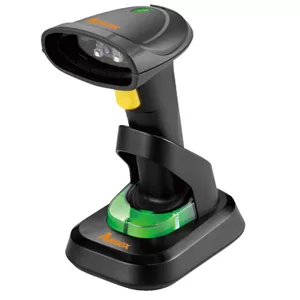

Argox AI-6821 Barcode Scanners in Jessor

AI-6821, the very first model of Argox wireless 2D Imager Scanner for a light-industry grade, eagle-eye grade reading engine that has enhanced performance on 4 mil labels for small IT-components, jewelry labels and so on. The transmission rate is also 3 times faster than the competitors within its class which will greatly increase your efficiency and minimize your downtime.

AI-6821 has built-in cross-line laser targeting design which allows you to work perfectly under ultra-white light and insufficient light source environment with on-demand scanning accuracy. It will greatly reduce the user's fatigue. AI-6821 is also the freedom to use device that allows the users to extend up to 100m in distance within its distance, so it maximizes the flexibility of the users.

 Transcendence of its class The rugged design of AI-6821 is certified by IP65 with drop rate resistance of 1.8-meter vertical distance to prevent any data loss and transmission. impossible to be a break. The enhanced alert beep has a dynamic setting that fits your working environment even under the high-noise condition and it also provides vibration alert.

 Accuracy and Precision The era of Big Data is coming, AI-6821 comes with DataMagic data editing software to enhance your usability. It takes no time to complete the set with the user-friendly UI design; you will be able to complete the data analysis whenever you want.

 Ruggedized: Industrial grade IP65 dust and water resistance with 1.8 meters safe drop distance protection. It will withstand sudden drops and a variety of collisions. AI-6821 will remain stable operation whether you use it for the outdoor or dusty environment.

 Precision & Efficiency: Rapid reading speed. Three times the data transmission speed comparing to other scanners in its class.

 Excellent performance: Processing up to 4mil resolution barcode readability. Support all types of electronic devices, such as mobile phones, tablets, and LCD displays.

 Scanning enhancement: Patented Cross-line laser targeting indicator reduces user fatigue and it will improve your efficiency.

 Data Collection Mode: Support Data Collection Mode for batch scanning (7KB)

Light Source 625nm visible red LED
Image Sensor752*480 Area Imager
Depth of FieldAI-6820:Code 39 5mil 43-143mm, EAN 13mil 37-358m, QR code 8mil 67-110mm, QR code 20mil 37-320mm, PDF 417 13mil 22-250mm, DataMatrix 15mil 32-280mm. AI-6820HD:Code 39 3mil 25-75mm, Code 39 5mil 25-105mm, EAN 13mil 45-150mm, QR code 8mil 30-80mm, QR code 20mil 35-160mm, PDF 417 13mil 25-115mm, DataMatrix 15mil 30-130mm.
ResolutionAI-6820: 4mil (Code 39). AI-6820HD: 3mil (Code 39)
Print Contrast Ratio (minimum)25%
Decode CapabilityCode 11, Code 128, Code 39, Code 93, Discrete 2 of 5 (DTF), EAN-13, EAN-8, Interleved 2/5, ISBT-128, Italian Pharmacode ( code 32), Korean 3 of 5, MSI plessey, UPCA, UPCE, UPC-E1, UPU FICS Postal, US Planet, US POSTNET, USPS, Australian Post, Japan Post, KIX Post, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), Aztec Code, Data Matrix, MaxiCode, Micro QR, QR, OCR
Wireless CommunicationsBT class1 Version 2.1+EDR 100 meters range
Scan IndicatorsLED, Beeper, and Vibrator
Scanner Dimensions94mm x 76mm x 158mm

Cradle Dimensions130mm x 88mm x 95mm
Input Voltage5V+/- 5%
Operating Temperature-20°C to 55°C (32°F to 131°F) (Charging 0°C to 40°C)
Storage-20°C to 70°C (-4°F to 158°F)
Humidity5% to 95% related humidity, non-condensing
Ambient LightUp to 100,000 lux
BatteryRechargeable 3.7 V 2200mAh, li-ion Battery
Drop ResistanceScanner:1.8m, Cradle: 0.9m
Programming MethodUser Manual setting barcod , Windows ScanUtility configuration program
Operation ModeHandcuff mode, Data collection mode, Sleep mode, Auto sensing mode
SealingIP65
Program UpgradeEnabled by build-in flash memory
Cable Length1.8m
Scanner StandOptional
Power SupplyOptional
Agency ListingCE, FCC, ROHS, BSMI
Attention*Argox reserves the right to enhance and modify the specification without prior notice. Please check the Argox sales representative for the most updated specifications.
