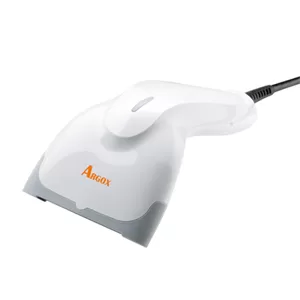

Argox AR-3000 Barcode Scanners in Jessor

The new AR-3000 handheld barcode scanner excels at retail and office applications. Providing fast and accurate capture at 300 scans per second for rapid and efficient readings, the AR-3000 easily scans even the smallest barcodes at 3-mil resolution, up to 30% print contrast, and barcode width of 55mm. The AR-3000 is lightweight at only 85g and its ergonomic design and comfortable grip form factor make scanning quick and easy. With no moving parts and drop tested at 1.5M, the AR-3000 is durable and well-suited for commercial applications. The AR-3000 is a general-purpose reader that reads all common 1D barcode symbologies and supports GS1 DataBar Barcode, EAN8, EAN13, and Code 128. Interfaces supported include USB, HID, and RS-232. Retail applications for the AR-3000 include convenience stores, supermarkets, grocery stores, mass merchandisers, hypermarkets, specialty stores, and department stores. Office applications are also a good stage for the AR-3000 to perform as it provides a helping hand for tasks such as document-tracking, and asset and library management. The AR-3000 is sleek and attractive for use on any counter or desk. The AR-3000 comes bundled with the DataMagic scan utility that is a powerful data formatting wizard for automating barcode scanning applications with data re-organization demands. Delivering outstanding performance, the AR-3000 handheld barcode scanner is perfect for the most demanding commercial applications

 Optimal for retail market application
 New Powerful CPU scanner (ARM-base)
 A 2500 pixel CCD scanner with more cost-effective
 Fully support all popular 1D barcode readability
 High-resolution barcode readability (up to 3mil)
 Multiple interfaces for variety application(USB HID/ USB COM, RS-232)
 High-speed scanning rate (300 scans/sec) providing superior reading performance

Light Source
623nm visible red LED

Image Sensor
2500 pixel CCD

Depth of FieldCode 39 3mil 0-10mm, Code 39 4mil 0-18mm, Code 39 5mil 0-26mm, Code 39 10mil 0-52mm, Code 39 13mil 0-58mm, Code 39 20mil 0-85mm, EAN 13mil 0-53mm,

Resolution
3mil (Code 39)

Print Contrast Ratio
(minimum)30%

Decode Capability
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited)

Wireless Communications
N/A

Communication Interface
USB, RS-232 ( Factory default )

Scan Indicators
LED, Beeper

Scanner Dimensions
127mm x 76mm x 128mm

Cradle Dimensions
N/A

Input Voltage
5V+/- 5%

Operating Temperature
0ƒ to 50ƒ / 32‰ to 122‰

Storage
-20ƒ to 60ƒ ( -4‰ to 140‰)

Humidity
10% to 90% relative humidity, non-condensing

Ambient Light
Up to 20,000 Lux

Battery
N/A

Drop Resistance
1.5m

Programming Method
User Manual setting barcode , Windows ScanUtility configuration program

Operation Mode
Trigger mode, Auto-sensing mode

Sealing
N/A

Program Upgrade
N/A

Cable Length
2.2m

Scanner Stand
N/A

Power Supply
Optional

Agency Listing
CE, FCC, ROHS, BSMI

Attention
*Argox reserves the right to enhance and modify the specification without prior notice. Please check the Argox sales representative for the most updated specifications.
