Argox AS8020 Barcode Printers in Jessor

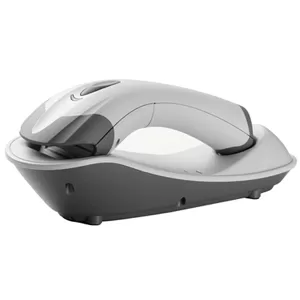

The new AS-8020CL Cordless Scanner is the wireless version of our popular AS-8000 Scanner. It offers the same advantages in speed, depth-of-field, reliability, sleek styling, and ease-of-use, but now there is the wireless capability to give operators greater mobility for scanning those tough to reach barcodes. The AS-8020CL cordless scanner is perfect for retail applications. It is easy to operate, light-weight, and comfortable to use. This scanner reads all common barcode symbologies from contact up to a distance of 270mm. The rubber housing allows contact scanning for faster scans. An outstanding cordless scanner for retail applications, the AS-8020CL provides unbeatable performance in a cost-effective package

 Light Weight, Ergonomic Design.
 General Purpose reader a single device covering the broadest range of applications.
 Durable without any moving parts to wear out.
 Operate with a 100-meter data transmission range.
 Excellent Scanning Performance starting at 0.1mm (4 mils)
 Readable Under Sun Light.
 Support GS1 Databar (RSS); CS ( Composite Symbology) barcodes.
 Support Data Collection Mode for batch scanning (1KB)
 Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°)
(3) Drop: 1.5 meter.

Light Source
630nm Visible Red LED

Image Sensor
2048 pixel CCD

Depth of Field
Code 39 4mil 5-50mm, Code 39 5mil 0~60mm, Code 39 10mil 0-130mm, Code 39 13mil ~180mm, Code 39 20mil ~270mm, EAN 13mil 0-165mm

Resolution
4mil (Code 39)

Print Contrast Ratio (minimum)30%

Decode Capability
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), MicroPDF417

Wireless Communications
BT class1 Version 2.1+EDR 100 meters range

Communication Interface
USB, RS-232

Scan Indicators
LED, Beeper

Scanner Dimensions
95mm x 87mm x 130mm

Cradle Dimensions
234mm x 55mm x 94mm

Input Voltage
5V+/- 5%

Operating Temperature
0°C to 50°C (32°F to 122°F)

Storage
-20°C to 70°C (-4°F to 158°F) (battery not included for 8000CL)

Humidity
10% to 90% relative humidity, non-condensing

Ambient Light
Up to 45000 lux

Battery
Rechargeable 3.7 V 1000mAh, li-ion Battery

Drop Resistance
Scanner 1.8m Cradle 0.9m

Programming Method
User Manual setting barcode, Windows ScanUtility configuration program

Operation Mode
Handcuff mode, Data collection mode, Deep-sleep mode, Auto-sensing mode

Sealing
IP42

Program Upgrade

Enabled by build-in flash memory

Cable Length
2.0m

Scanner Stand
N/A

Power Supply
Standard
