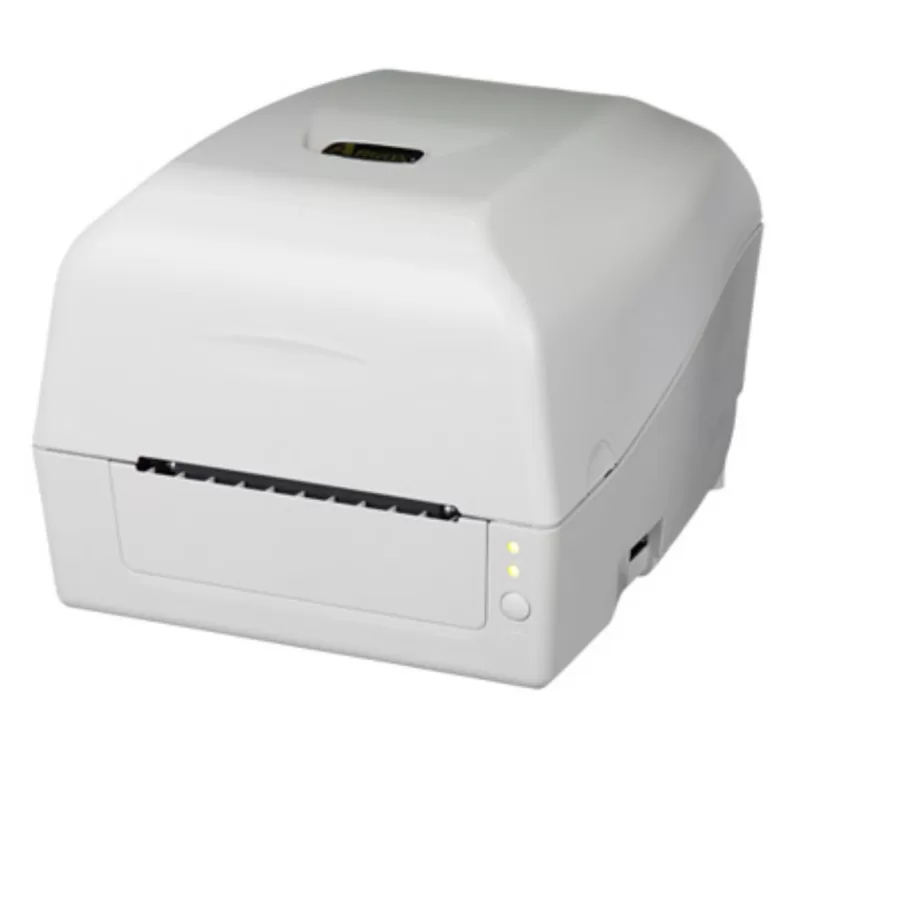

CP-3140EX Using a new generation desktop printer to save time and money. Feature-rich to make daily work simple and easy.

Shell Suit design: Interface roof feature can avoid interface from water, spill damage, and keep machines close to the wall, reduce operating space.

Easy to load media: Large loading space to help media and ribbon installation very easily.

Durable life: Inherited the turtle spirit, integrated the structure makes CP-EX Series solid and robust.

Performance enhances: expanded SDRAM and Flash ROM can store more fonts, forms, graphics.

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	300 dpi(12 dots/mm)
Printing Speed	Max. 4 ips
Printing Length	Max. 50(1270mm)
Printing Width	Max. 4.16(105.7mm)
Memory	32 MB SDRAM, 16MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (movable) & Transmissive sensor x 1 (Center fixed)
Operation Interface	LED Indicator x 2, Button(Feed) x 1
Communication Interface	Ethernet, USB device, RS-232, USB host
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049H ~ 0.23 H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
Wireless Security	N/A
1D Barcodes	UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics	PPLA: PCX, BMP, IMG, HEX, GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ(Optional)
Software-label Editing	BarTender from Seagull Scientific Argo bar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Windows Compatibility	N/A
Software-utility	Printer Utility, Font Utility
Driver tools	Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.65 (118mm). Min. width: 0.8(20mm). Thickness: 0.0024~0.008(0.06mm~0.2mm) 5(127mm) OD on a 1 (25.4mm) ID core
Ribbon	Ribbon width: 1~4(25.4mm~102mm), Ribbon length: Max. 300m. Core size ID: 1(25.4mm), optional: 0.5(12.7mm), Core width: 2.6(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 226mm x H 188mm x D 276mm
Printer Weight	4.6 lbs (2.1 kg)
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
Battery	N/A
Operation Environment	Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
Real Time Clock	N/A
Standard Item	N/A
Optional Items	Guillotine Cutter, Rotary Cutter, Peeler, External media stand
Agency Listing	CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check the Argox sales representative for the most updated specifications.
