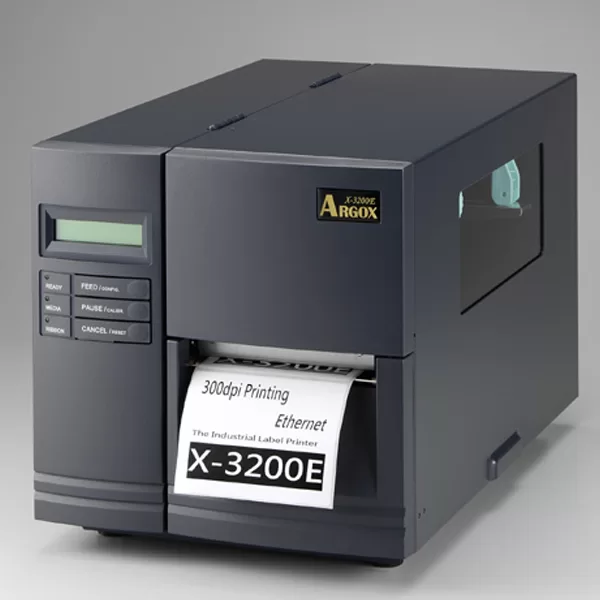

Argox X-3200E/X-3200ZE Industrial Printer

The X-3200E/X-3200ZE industrial barcode printers feature 300dpi printing for high-quality text and graphics on fabric labels, safety labels, and labels for small items such as jewelry.
The heavy-duty X-3200E/X-3200ZE is capable of 5ips print speed using its 32-bit RISC microprocessor. The 8MB Flash and 16MB DRAM onboard memory facilitate high-quality printing.

The heavy-duty X-3200E/X-3200ZE is capable of 5ips print speed using its 32-bit RISC microprocessor. The 8MB Flash and 16MB DRAM onboard memory facilitate high-quality printing. An internal RTC lets you print time and dates on labels. RS-232, parallel, USB, and optional Ethernet (X-3200E/X-3200ZE) interfaces allow easy plug-and-play integration with your current system. For stand-alone operation, the X-3200 has a standard PS/2 interface for connecting an input device such as a keyboard or scanner, as well as a multilingual LCD display for convenient installation, configuration, and operation.
TheX-3200ZE and X-3200E printers provide outstanding value as it delivers industrial-strength high-quality printing for a wide range of labels.

 For heavy-duty labeling demand
 300dpi high resolution available
 32-bit CPU, LCD display, up to 5ips printing speed, and enlarged memories
 Adjustable reflective and transmission double sensor system ensures precise label detection
to meet versatile media demands
 Centronics parallel, RS-232 and USB interfaces available for versatility applications,
and PS/2 interface for standalone operation: directly connecting a PC keyboard to input
label data without a PC
Industrial-strength media management: 360M ribbon & 8 media compartment
Easy media loading & ribbon installation
An external switch sets the printer for use with either ribbon wound ink-side in or ink-side out
Durable and easy maintenance: easy-to-replace cutter and peeler
Support 1D/GS1 Data bar, 2D/ Composite codes and QR barcodes
Full range of options: Cutter, Peeler, media stacker, and standalone keyboard (Argokee)
Printer Server external for Ethernet/Wireless/Bluetooth options

Printing method

Direct Thermal & Thermal Transfer

Printing resolution

300dpi(12 dots/mm)

Printing Speed

1~up to 5 ips(25.4~127mm/s)

Printing Length

Max 50(1270mm)/ Min 0.2(5mm)

Printing Width

MAX 4.16

Memory

16MB DRAM(13MB user available)

8MB Flash ROM(6MB user available)

CPU Type

32 bit RISC microprocessor

Sensors

Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

Head o

Operation Interface

Back-lit LCD, 2-line x 16, LED Indicator x 3(Ready/Media/Ribbon)

Communication Interface

Centronics Parallel(Baud rate 2400 ~ 115200 bps), RS-232, USB, PS/2 keyboard, Ethernet

Fonts

Internal character sets standard

5 alpha-numeric fonts from 0.049H ~ 0.23 H (1.25mm ~ 6.0mm)

1D Barcodes

PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digi

2D Barcodes

PPLA/PPLB: MaxiCode, PDF417, Data Matrix (ECC200 only), QR code, Composite codes

PPLZ: MaxiCode,

Graphics

PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only)

PPLZ: GRF, Hex amd GDI

Emulation

X-3200E: PPLA, PPLB

X-3200ZE: PPLZ

Software - Label editing

Windows Driver (Win 2000/XP/Vista/Windows 7), BarTender

Software - Utility

Printer Utilit, Font Utility

Media Type

Roll-feed, die cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric la

Media

Max Width:4.4(112mm) Min Width:1(25.4mm) Thickness:0.0025~0.01(0.0635~0.254mm)

Max roll ca

Dimensions

W250 x L418 x H263 mm

Ribbon

Ribbon roll  max OD: 3(76mm) Ribbon Length: max 360m wax, 300m resin Core size ID: 1(25.4mm) wi

Weight

11 kgs

Power Source

Internal Universal Power Supply

100 ~ 240 VAC, 50/60 HZ

Real Time Clock

Standard

Operation Environment

Operation Temperature: 40‰~100‰ (4ƒ~38ƒ),

10% ~ 90% non-condensing,

Storage Temperature: -4‰

Optional Items

Guillotine Cutter, Rotary Cutter, Dispenser kit, Rewinder, Media Stacker, ArgoKee

Agency Listing

CE, FCC, UL, cUL, CCC, RoHS
