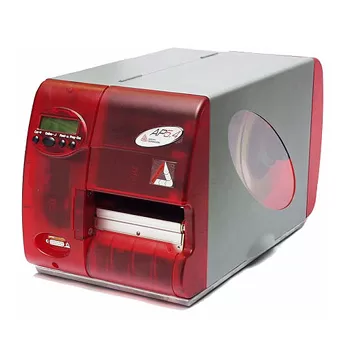

Avery Dennison 5.4 Barcode Printer in Jessor

3.5 (439 ratings) Model: IBCAV5.4BR

The AP 5.4 is very versatile in nature. Simple operation and straightforward operating controls make it easy to work and all the labels for any applications are produced quickly.Simple operation and straightforward operating controls make it easy to work with the AP 5.4.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryIndustrial Printers

BrandAvery Dennison

Warranty1Year offsite.

AvailabilityIn stock, ships fast

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

avery-dennison-5.4PDF datasheet

The AP 5.4 is very versatile in nature. Simple operation and straightforward operating controls make it easy to work and all the labels for any applications are produced quickly.

Simple operation and straightforward operating controls make it easy to work with the AP 5.4. Labels and foils can be changed very easily since the material feed opens at the side. It is also very easy to replace print heads and print drums. No tools or special accessories are required to change the print head. The print pressure of the print head can be varied very easily using the adjustment screw. In addition, the graphical display shows status messages and menu guidance in a user-friendly manner.

Depending on your requirements, the AP 5.4 can print fonts, standardized symbols, and barcodes on a range of different materials. The intelligent and robust design and well-thought-out features are an additional bonus: For example, the print module for the material feed and for maintaining the print head as well as the moveable label sensor.

Print Method	Thermal transfer / Direct thermal.
Resolution	300 d.p.i. Flat Type
Control Panel	4 function keys for user-friendly menus, [122 X 32] pixels user-friendly graphical LCD display with 2 lines and 16 characters.
Processor	32- bit IDT with 32- bit data bus
Memory	16 MB SDRAM / 4 MB FLASH ROM
Print Speed	50~150 mm/sec (2~6 "/sec)
Print Width	up to 105 mm
Fonts	17 fonts including OCR-A and OCR-B, 2 scalable fonts, True Type fonts supported, scaling in X/Y direction up to factor 8, rotation 90, 180, 270
Bar Codes	1-dimensional: EAN 8 and EAN 13 with add-on 2 and 5, UPC-A, UPC-E, Code 39,Code 39 Ratio 3:1 and Ratio 2,5:1,Code ITF, Codabar, UPS Code 128, Code 2/5, Code 2/5 1, Code 2/5 5, Code 2/5 Interleaved Ratio 1:3, Code 2/5 Matrix Ratio 1:2,5; Code 2/5 Matrix Ratio 1:3; Code MSI, Code EAN 128; Postcode (Guide and Identity Code),UPS Code 128; all barcodes scalable in 16 widths and the height; 2-dimensional: Data Matrix Code, Maxi Code, PDF 417, Codablock F
Graphic Format	BMP, PCX, JPG, TIF, GIF
Ribbon	Foil width 25 - 114 mm, foil outer diameter max. 80 mm, length according to foil type up to 500 m inner core diameter 25 mm, a color side inside (outside possible)
Interfaces	IEEE 1284 Parallel, USB as standards, Serial RS232 / RS485 / RS422, ONBOARD ETHERNET INTERFACE (10/100 BASE T) LPD server (LPR - LPD) protocol
Material	Label rolls, material suitable for thermal and thermal transfer printing, plastic foil, PE, PP, PVC, Material width up to 120 mm, material thickness 60 - 240 g/m depending on the thickness of the label.
Media Sensor	Self-initiating, adjustable transmitted light sensor; option: Reflex sensor or Full-Size Sensor Media Reserve Material roll outer diameter up to 210 mm, inner core diameter 1,5", 3", 4"
Driver	Windows printer driver (95 / 98 / 2000 / NT / XP)
Emulation	EASY PLUG, Line Printer, Hex Dump
Power Supply	100 - 240 V, 50 / 60 Hz
Operating Env	Operating temperature 5 - 40 C, humidity 30 - 85% non-condensing
Standards	CE, GS
Dimensions	272 x 260 x 462 mm (W x H x D)
Options	AP 5.4 peripheral version: additionally cutter, external and internal rewinder, dispenser kit T1 type compact flash card 64 MB
