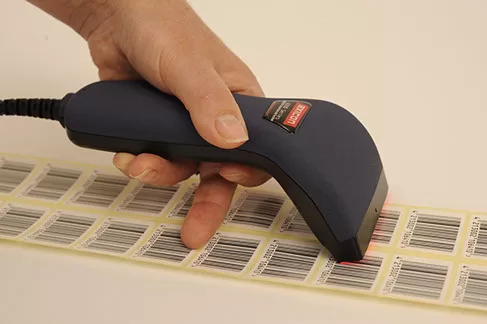

Axicon 6015

The Axicon 6015 barcode verifier is designed to verify small linear barcodes (with a maximum length, including quiet zones, of 66 mm) typically used on products scanned at the retail point-of-sale, or pharmaceutical products scanned at the point-of-care.  These barcodes include EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, HIBC, GS1 DataBar, GS1-128, CIP 39, and Laetus Pharmacode.

Features & Benefits

ISO/IEC verification with ANSI option, traditional verification, symbology auto-discrimination, automatic variable aperture, scan saving and loading, static reflectance meter, display of x-dimension and magnification, individual bar and space dimensional analysis.  Product look-up option and other software plugins are available to validate data content of codes such as PZN, CIP, ISBN, ISSN.

A CCD imager-based linear barcode verifier, designed to be ISO/IEC compliant. Aperture is automatically switchable between aperture reference numbers 03, 05, 06, 10, and 20.  Scan width 66mm (including quiet zones). The wavelength of light 660 nm.  Weight: 230g. Size: 165 x 75 x 55 mm.

Designed to function with any PC running any currently supported version of Microsoft Windows, or the Axicon PV-1000 portable display unit.

The verifier is supplied as the verifier read-head, its data cable, a CD with the Axicon verifier software (in several languages), a quick start guide, a calibration card, and compliance certificates in a protective carry case.
