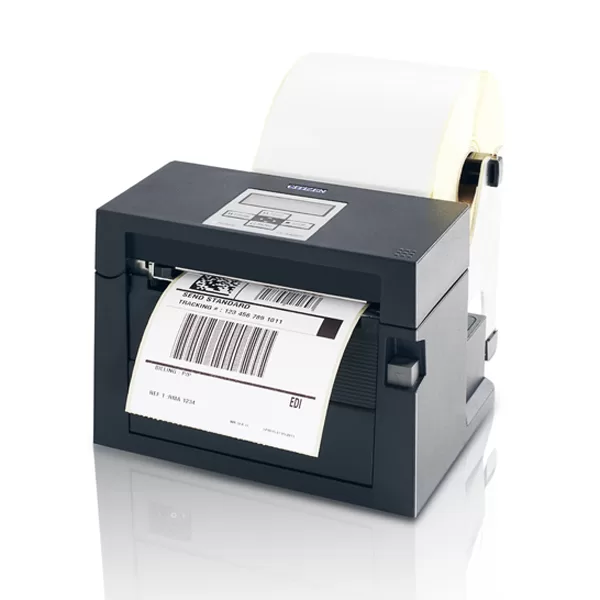

| | CL-S400DT |
|---|
| Printing method | Direct thermal |
|---|
| Resolution (approx) | 203 dpi (8 dots/mm) |
|---|
| Print speed (max.) | 6 ips |
|---|
| Print width (max.) | 104mm |
|---|
| Print mode | Batch mode | Normal printing (Single or multiple sheets) |
|---|
| Teaf off mode | Feeds back media to the tear-off position after printing is completed. |
|---|
| Cut mode (*1) | Prints while cutting at a designated number of sheets.
The following two kinds of cut mode operations are available.
(1) Backfeed
(2) Cut through |
|---|
| Peel mode (*1) | Peels labels from the liners after printing them |
|---|
| Media | Media type | Roll, fanfold
(Continuous media, die-cuts media, continuous tags, continuous tickets) |
|---|
| Type of media | Thermal-transfer media |
|---|
| Recommended media | Heat-transfer media: Label media (150LA-1 Ricoh),
Tag media (TB2E0V Mitsubishi Paper) |
|---|
| Media width | 19.5 - 118.0mm (min. to max.) |
|---|
| Media length | 6.35 - 812.8mm (min. to max.) |
|---|
| Media thickness | 0.0635 - 0.254mm (min. to max.) |
|---|
| Label width | 19.5mm (min.) |
|---|
| Label pitch (*2) | 6.35mm (min.) |
|---|
| Roll media diameter | External diameter: 127mm (max.)
Media core: 25.4 - 76mm |
|---|
Barcode
(Datamax®
emulation) | One-dimension | Code 3 of 9, UPC-A/E, EAN-13 (JAN-13), EAN-8 (JAN-8), Interleaved 2 of 5, Code 128, HIBC (Modulus 43-used code 3 of 9), Codebar (NW-7), Int 2 of 5 (Modulus 10-used Interleaved 2 of 5), Plessey, Case Code, UPC 2DIG ADD, UPC 5DIG ADD, Code 93, Telepen, ZIP, UCC/EAN128, UCC/EAN128 (for K-MART), UCC/EAN128 Random Weight, FIM |
|---|
| Two-dimension | UPS Maxi Code, PDF-417, Data Matrix, QR Code, Aztec, RSS |
|---|
Barcode
(Zebra®
emulation) | One-dimension | Code 11, Interleaved 2 of 5, Code 39, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Industrial 2 of 5, Standard 2 of 5, ANSI CODABAR, LOGMARS, MSI, Plessey, UPC/EAN Extensions, UPC-A, POSTNET, Planet |
|---|
| Two-dimension | Code 49, PDF-417, CODE BLOCK, UPS Maxi Code, Micro PDF-417, Data Matrix, QR Code, RSS, TLC39 |
|---|
Font
(Datamax® emulation) | 1. Seven kinds of fixed-pitch font
2. OCR fonts (OCR-A, OCR-B) (*3)
3. Proportional fonts
4. True type rasterizer |
|---|
Font
(Zebra® emulation) | 1. Five kinds of fixed-pitch font
2. OCR fonts (OCR-A, OCR-B) (*3)
3. Proportional fonts
4. True type rasterizer (*4) |
|---|
| Control language | CITIZEN original language |
|---|
| Media sensor | Transparent sensor, Reflective sensor, Label peeling sensor (*1) |
|---|
| Standard interface | Serial (RS-232C), USB (version 2.0) |
|---|
| Optional interface | Parallel (IEEE-1284)
LAN (10-BASE-T/100-BASE-TX) |
|---|
| Control panel | Back-lit LCD and 4 buttons |
|---|
| CPU | 32 Bit RISC CPU |
|---|
| ROM | Flash ROM 8MB (User area: 1MB) |
|---|
| RAM | Datamax® emulation | SDRAM 16MB(User area: 1MB) |
|---|
| Zebra® emulation | SDRAM 16MB(User area: 4MB) |
|---|
| Power | 220-240V 50/60Hz |
|---|
Temperature and
humidity | Operating | Temperature: 0 to 40°C
Humidity: 30 to 80% (no condensation) |
|---|
| Storage | Temperature: -20 to 60°C
Humidity: 5 to 85% (no condensation) |
|---|
| External dimension (W—D—H) | 206 — 148 — 150mm |
|---|
| Weight (approx.) | 3.5 kg |
|---|
