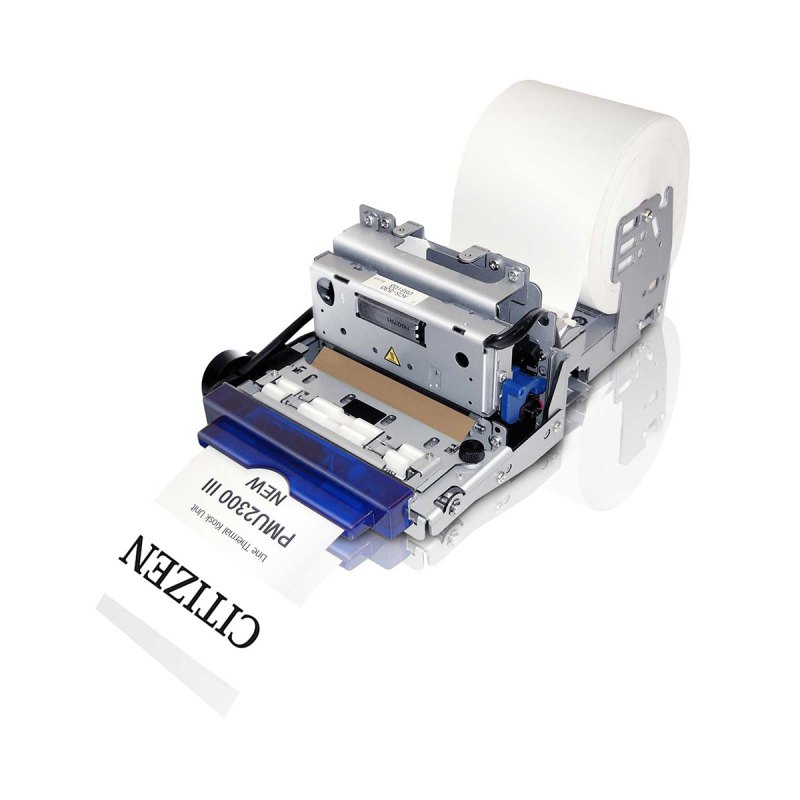

Citizen PMU2300III Kiosk Printer
Citizen PMU2300III: 3 inch thermal kiosk printing mechanism with presenter. Available in 203 dpi resolution.
- CategoryKiosk Printers
- BrandCitizen
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
Citizen PMU2300III: 3 inch thermal kiosk printing mechanism with presenter. Available in 203 dpi resolution. It is designed to be built into self-service kiosks, ticketing machines, queue systems and other unattended equipment.
Buy Citizen PMU2300III from Mindware
Mindware (Indian Barcodes) is a Citizen printer sales and service partner, supplying genuine Citizen printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.
For the best price of Citizen PMU2300III in India, call 8527522688 or email gm@indianbarcode.com.
- Integral full or partial cutter
- Presenter including retract functionality
- Option of 0.15mm paper thickness
- Paper loading: Easy paper loading
- Speed: Prompt print out of receipts - up to 150mm per seconds
- Media thickness: Paper thickness up to 0.150mm
- Small footprint and compact design
- Presenter (including retract function)
| Specifications | |
|---|---|
| Printing Technology | Direct Thermal |
| Resolution | 203 dpi |
| Print Speed (maximum) | 150 mm /sec. |
| Media type | Thermal receipt paper |
| Media Width (min to max) | 80mm |
| Media Thickness (min to max) | 60 to 87 μm |
| Number of columns | Up to 48 digits (12 × 24: font A); Up to 64 digits (9 ×17: font B); Up to 72 digits (8 ×16: font C); Kanji Font C: 36 columns; Kanji Font A: 24 columns |
| Character table / Code page | Alphanumeric; International characters; JIS C 6226-1983; Kana; Kanji (JIS level 1, level 2); Katakana; Thai code18; WPC1252; 437; 850; 852; 857; 858; 860; 863; 864; 865; 866 |
| Line spacing | 4.23mm (1/6 inch); adjustable by user comand |
| Optional interfaces | Serial (RS-232C compliant); Parallel (IEEE 1284 compliant); USB |
| Flash (Non-Volatile Memory) | 256K bytes |
| Input buffer | 4K bytes / 45 bytes |
| Barcodes | UPC-A; UPC-E; EAN-13 (JAN-13); EAN-8(JAN-8),; Codabar, ITF; CODE39; CODE93; CODE128; PDF 417; QR Code |
| Size (W x D x H) and Weight | PMU2300IIISN: 113×98×182, 0,9 Kg; PMU2300IIISB: 113×98×208, 1.0 Kg; PMU2300IIIPB: 113×98×260, 1.2 Kg; PMU2300IIIPN: 113×98×234, 1.2 Kg |
| Power supply | Input voltage: DC 24V± 7% |
| Power consumption | 100 W |
| Reliability | 100 Million pulses or 100 Km, 1 million cuts |
| Operation environment | -10 to +60°C, 35% - 85% RH, non condensing |
| Storage environment | -25 to +65°C, 10% - 90% RH, non condensing |
| EMC and safety standards | CE; TUV; UL; C-UL; FCC class A |
| Presenter | Min ticket length: 75mm, Max ticket length: 120mm |
| Bezel (Snout) | Equipped with four monochromatice white LEDs |
| Code pages | 12 codepages, 16 country tables |
| Options & Software | |
| Operating Systems | ESC/POS® emulation; Windows XP, Vista, 7, 8.1 und 10, Server 2008R2, 2012 |
| Applications | Kiosk; Retail; Ticketing |
