Datalogic Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace.

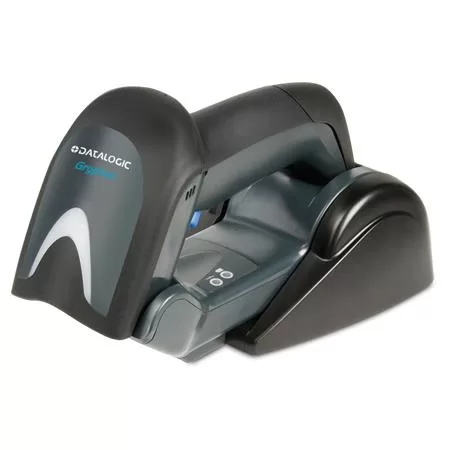

Datalogic Gryphon GBT4100

Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v2.0 compliant device.Datalogic™s unique 2-position cradle provides multiple features for the user. When in the up™ position, this imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity. The Gryphon GBT4100 reader’s batch mode capability allows more than 1200 bar codes to be stored in the memory. Combined with 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range. Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models.

Datalogic Gryphon GBT4100

Technical Specification Depth Of Field5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 inPrint ContrastPrint Contrast Ratio (Minimum) 15%Read Rate(Maximum) 325 reads/sec.Reading AnglePitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65°Scan Resolution(Maximum) 0.076 mm / 3 mils Performance CharacteristicsIndicatorsCradle Indicator LE Ds Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)InterfaceRS-232 / IBM 46XX / USB Multi-Interface;RS-232 / USB / Keyboard Wedge / Wand Multi-InterfaceLight SourceLight Source Illumination: LED Array 630 - 670 nmReading Indicators (Beeper Operation)(Adjustable Tone and Volume); Datalogic Green Spot™Good Read Feedback; Good Read LED Communication ModulesCordless CommunicationsBluetooth Wireless Technology Protocol: Bluetooth 2.0 Certified Class 2Radio Frequency: 2.4 GHzRadio Range (Open Air): 30.0 m / 98.4 ft Data Capture CharacteristicsDecoding CapabilityPostal Codes : China Post 1D / Linear Codes Autodiscriminates all standard 1D codes including GS1DataBar linear codes. Stacked Codes: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional Power SpecificationsBattery Charging timeCharge Time: External Power (12 VDC): 4 HoursReads per Charge: 33,000Battery TypeBattery Type: Lithium-Ion, 2100 mAhCurrent ConsumptionCharging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5VDC;Standby/Idle (Typical): < 2.5 mA @ 5 VDCInput Voltage4.5 - 14.0 VDC Environment CharacteristicsAmbient Light Levels0 - 100,000 luxDrop ResistanceWithstands repeated drops from 1.8 m / 5.9 ft onto a concretesurfaceElectrostatic Discharge (ESD Protection )(Air Discharge) 16 kVHumidityHumidity (Non-Condensing) 5 - 90%Operating TemperatureOperating: 0 to 50°C / 32 to 122°FParticulate and Water SealingIP52Storage TemperatureStorage/Transport: -20 to 70°C / -4 to 158°F Physical CharacteristicsDimensionsCradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 inReader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 inWeightCradle: 246 g / 8.68 oz; Reader: 225 g / 7.94 ozColorBlack; White OptionsAccessoriesBatteries/Battery Chargers: RBP-GM40 Removable Battery Pack Mounts/Stands:11-0360 Multi-Purpose Stand/Mount, Black11-0362 Multi-Purpose Stand/Mount, GreyHLD-G040-BK Desk/Wall Holder, G040, BlackHLD-G040-WH Desk/Wall Holder, G040, WhiteSTD-AUTO-G040-BK Smart Stand, G040, BlackSTD-AUTO-G040-WH Smart Stand, G040, WhiteSTD-G040-BK Basic Stand, G040, DarkSTD-G040-WH Basic Stand, G040, White Base Stations/Chargers: BC4010-BK-BT Base/Charger, POS Multi-Interface, BlackBC4010-WH-BT Base/Charger, POS Multi-Interface, WhiteBC4030-BK-BT Base/Charger, Standard Multi-Interface, BlackBC4030-WH-BT Base/Charger, Standard Multi-Interface, WhiteCHR-GM40-BK Charging Only Base Station, BlackCHR-GM40-WH Charging Only Base Station, WhiteAgency ApprovalsThe product meets the necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certificationsSafety StandardsEnvironmental Compliance Complies to China RoHS; Complies to EU RoHSLED Classification IEC 60825-1 Class 1 LED ProductUser OptionsUtilities: Datalogic Aladd in Datalogic Aladdin configuration program is available for download at no charge pos / JavaPOS OPOS Utilities are available for download at no charge remote Host Download Lowers service costs and improves operations: BC4010Warranty3-Year Factory Warranty.
