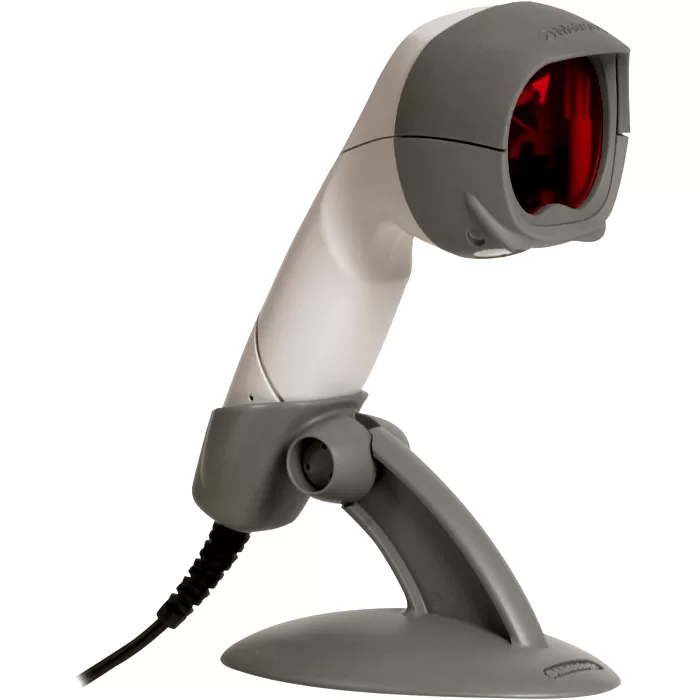

Fusion 3780 Omnidirectional Laser Scanner in Jessor

Honeywell's Fusion 3780 laser barcode scanner combines omnidirectional and single-line laser scanning into a lightweight and ergonomic hand-held form factor. The Fusion 3780 scanner's automatic stand detection allows users to seamlessly switch from hand-held to presentation scanning. The 20-line scan pattern provides superior scanning over existing single-line scanners, making the Fusion laser scanner ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores and convenience stores.

Primary omnidirectional scan pattern: Aggressive scanning of bar codes in any orientation, increasing throughput secondary single-line scan pattern: With a push of a button, switch to a targeted single-line for menu scanning Automatic stand detection: Hands-free operation for presentation scanning, reducing operator fatigueSleep mode with IR wake up: Multiple sleep modes reduce power consumption, extending the life and lowering cost of operation optional EAS integration: Deactivate an EAS tag and decode a bar code in a single scan

MECHANICALDimensions (LxWxH)189 mm x 65 mm x 73 mm (7.4 in x 2.6 in x 2.9 in)Weight195 g (6.9 oz)ELECTRICALInput Voltage5 VDC ± 0.25 VOperating Power1.4 W (275 mA @ 5 V)Standby Power1.0 W (200 mA @ 5 V)Host System InterfacesUSB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIAENVIRONMENTALOperating Temperature-20°C to 40°C (-4°F to 104°F)Storage Temperature-40°C to 60°C (-40°F to 140°F)Humidity5% to 95% relative humidity, non-condensingDropDesigned to withstand multiple 1.5 m (5 ft) dropEnvironmental SealingSealed to resist airborne particulate contaminantsLight Levels4842 LuxScan PatternOmnidirectional: 5 fields of 4 parallel lines; Button activated single lineScan SpeedOmnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per secondPrint Contrast35% minimum reflectance differencePitch, Skew60°, 60°Decode CapabilityReads standard 1D and GS1 DataBar symbologiesWarranty3 year factory warranty
