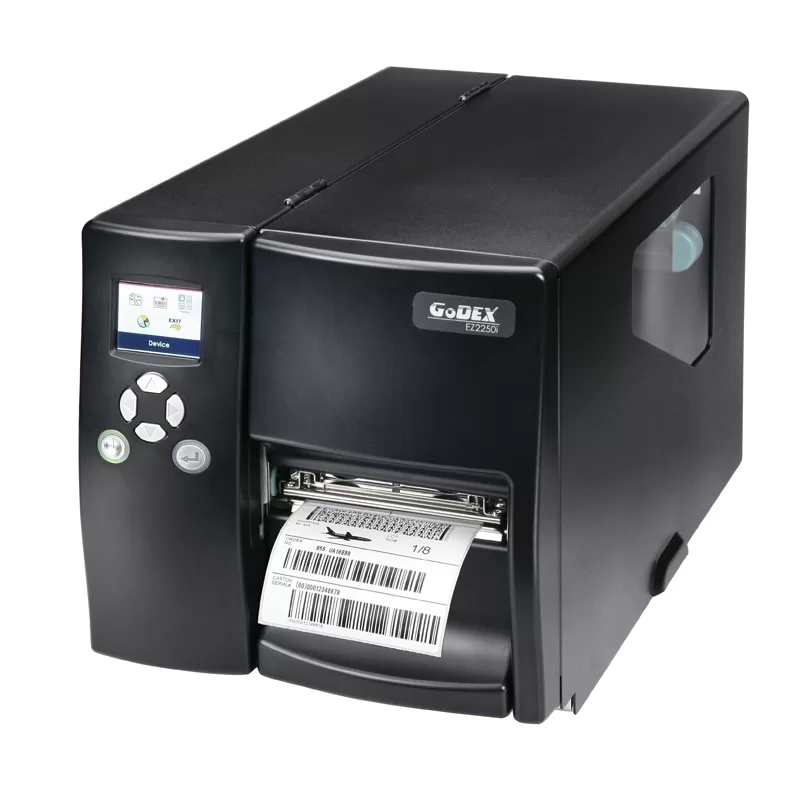

Enhanced mid-range industrial barcode printer for most applications

All metal mechanism design featuring die-cast center plane and base make the GoDEX EZ2250i series perfect for high volume applications.

Color TFT LCD and operation panel for easy and intuitive operation
USB Host for extension memory and standalone operation
All metal, industrial enclosure and print mechanism
Automatic self adjustment for coated inside/outside ribbons
300 DPI model

Print Method	Thermal Transfer / Direct Thermal
Resolution	300 dpi (12 dots/mm)
Print Speed	5IPS (127 mm/s)
Print Width	4.09" (104mm)
Print Length	Min. 0.16” (4 mm); Max. 45” (1143 mm)
Processor	32 Bit RISC CPU
Memory	8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm) Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm)
Ribbon	Types: Wax, wax/resin, resin Length: 1471’ (450 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.99“ (76 mm) Core diameter: 1” (25.4 mm)
Printer Language	EZPL , GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
Resident Fonts	Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Download Fonts	Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages	CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257 Unicode UTF8?UTF16BE?UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	Serial port: RS-232 (DB-9) USB 2.0 Ethernet 10/100 Mbps USB Host
Control Panel	Color TFT LCD with navigation button Power on/off button Calibration button
Power	Auto Switching 100-240VAC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity	Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE(EMC), FCC Class A, CB, cUL, CCC
Dimension	Length: 20.15” (512 mm) Height: 11.45” (291 mm) Width: 10.78” (274 mm)
Weight	33 lbs (15Kg) ,excluding consumables
Options	Cutter Module Label Dispenser + Internal Rewinder Parallel port adopter module (Centronic female 36-pin) Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
