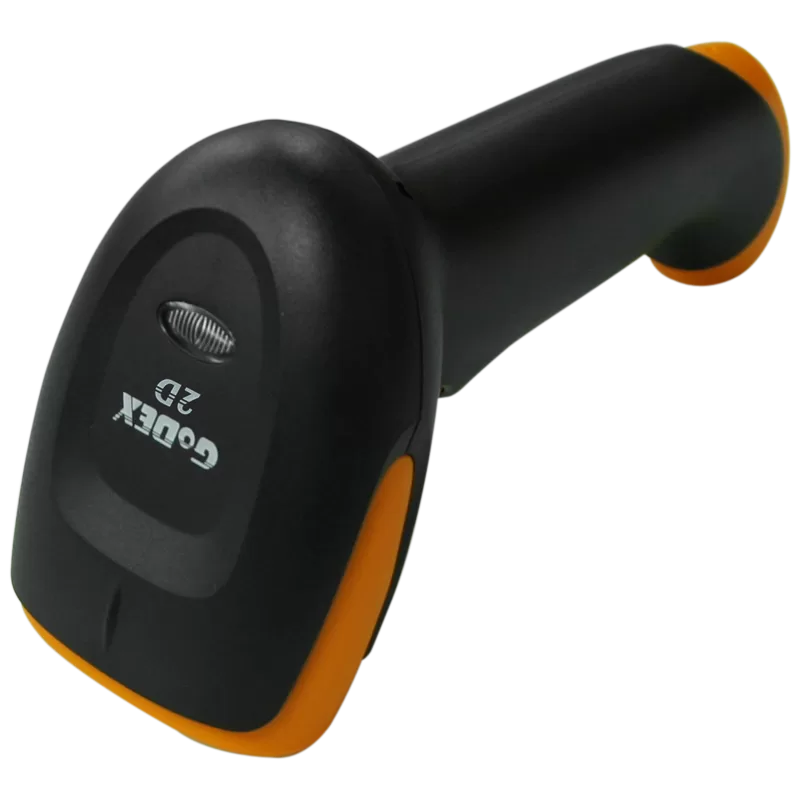

Godex GS550 Barcode Scanners

3.7 (52 ratings) Model: GS550

Godex GS550 2D Barcode scanner can read most popular 2D and 1D barcodes. From barcodes on regular paper to electronic screen, the GoDEX GS550 meets a wide range of barcode scanning applications.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryHandheld Barcode Scanners

BrandGodex

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

godex-gs550-barcode-scanners-specificationPDF datasheet

Godex GS550 2D Barcode scanner can read most popular 2D and 1D barcodes. From barcodes on regular paper to electronic screen, the GoDEX GS550 meets a wide range of barcode scanning applications.

System Interface	USB 2.0
Scan Pattern	Area Image (640 x 480-pixel array)
Motion Tolerance	Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle	Horizontal 42.4°; Vertical: 30.8°
Symbol Contrast	35% minimum reflectance difference
Pitch, Skew	60°, 70°
Decode Capabilities	Aztec, China Post(Hong Kong 2 of 5), Chinese Sensible(Han Xin) Code, Codabar, Codablock A & F, Code 128, Code 39, Code 93, Data Matrix, EAN/JAN-13, EAN/JAN-8, GS1 Composite Codes, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 Emulation, GS1-128, Interleaved 2 of 5, Korea Post, Matrix 2 of 5, MicroPDF417, MSI, NEC 2 of 5, Postal Codes-Linear, PDF417, QR Code, Straight 2 of 5 IATA(two-bar start/stop), Straight 2 of 5 Industrial(two-bar start/stop), TCIF Linked Code 39(TLC39), UPC-A, UPC-A/EAN-13 with Extended Coupon Code, UPC-E0 and UPC-E1
Input Voltage	4.0V DC to 5.0V DC
Power	2 W (400mA @ 5V DC - Operating) 0.45 W (90mA @ 5V DC - Standby)
Agency Approvals	CE, FCC, BSMI
Environment	Operating Temperature: 32°F to 104°F (0°C to 40°C) Storage Temperature: -40°F to 140°F (-40°C to 60°C)
Humidity	0% to 95% relative humidity, non-condensing
Light Levels	0 to 100,000 lux (9,290 foot-candles)
IP Rating	Intrusion Protection, IP42 requirement for case design
Drop	Designed to withstand 1m drops
Dimension	Length: 4.33 (110 mm) Height: 6.02 (153 mm) Width: 2.76 (70 mm)
Weight	0.27 lbs (0.12Kg)
Color	Black & Orange White & Red
Note	*Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.

GS550 2D Barcode scanner can read the most popular 2D and 1D barcodes. From barcodes on regular paper to electronic screen, the GoDEX GS550 meets a wide range of barcode scanning applications. 2D barcodes are commonly used on commercial products such as electronic ticketing and e-coupons; aviation, transportation, and logistics now all have embraced the convenience of 2D barcodes. With GS550, users will get a reliable and high-performance laser scanner that is suitable for different purposes.
