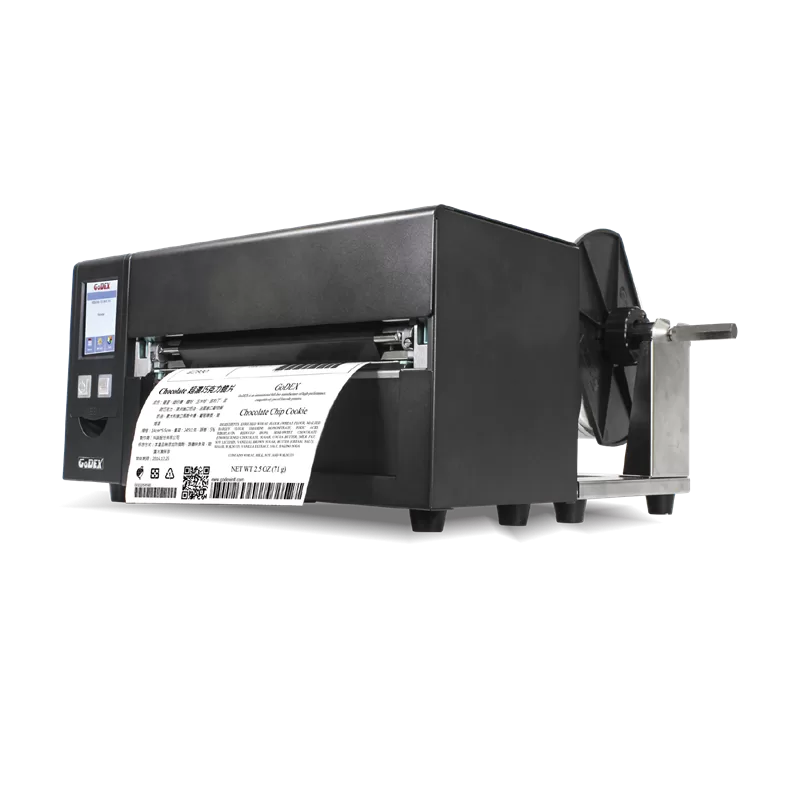

The best-in-class eight inch wide industrial barcode printer. Perfect for wide format labels.

The GoDEX HD830i is a rugged printer of exquisite design which includes significant characteristics of high performance electronics, reliable mechanism, user-friendliness and easy maintenance design.

3.2” color touchscreen facilitates intuitive navigation. Adjustable to 15°.
Outstanding breadth: max label width 10”/ Max print width 8.57”.
Optional wireless connectivity: Bluetooth or Wi-Fi module
A sturdy external label stand for up to 10” roll diameters included.
Advanced adaptive dampening technology : to optimize print quality
Internal Media Pressure plate is designed to stabilize the label printing process.

Print Method	Thermal Transfer / Direct Thermal
Resolution	300 dpi
Print Speed	up to 4 ips
Print Width	8.64” (219.5mm)
Print Length	Min. 1” (25.4 mm)** ; Max . 40” ( 1,016 mm)
Processor	Arm 9
Memory	128M Flash, 32M SDram
Sensor Type	adjustable reflective sensor and adjustable transmissive sensor
Media	Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Ribbon	Wax, wax/resin, resin
Printer Language	EZPL, GEPL, GZPL auto switch
Software	GoLabel (for EZPL only)
Resident Fonts	6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts: TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes	1-D Bar Codes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes : Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
Code Pages	Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8?UTF16BE?UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	USB 2.0 (B-Type) Serial port: RS-232 (DB-9) IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) USB Host (A-Type)
Control Panel	Backlight 3.2” touch screen LCD 1 Power on/standby button with dual colour LED backlight 1 FEED / PAUSE / CANCEL button with dual colour LED : Ready (Green); Error (Red) 1 Calibration button at rear panel
Power	Auto Switching 100-240V AC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature :41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing Storage: 10-90%, non-condensing
Agency Approvals	CE (EMC)?FCC Class B?CB?UL?cUL?CCC
Dimension	Length 221 mm Height 224 mm Width 431 mm
Weight	12.5 kg, excluding consumables
Options	Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install)
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability.
