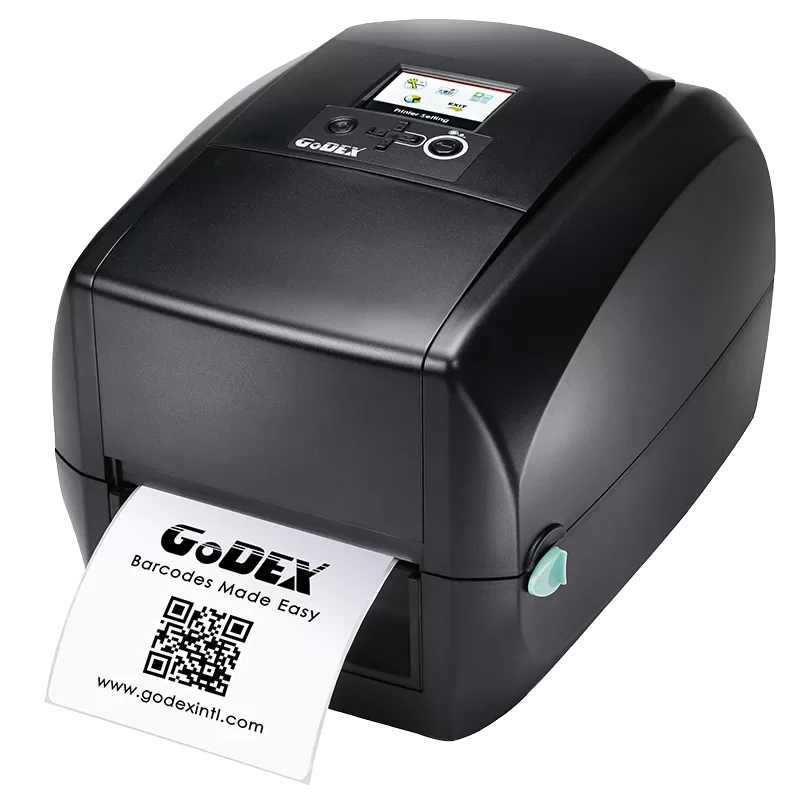

Godex RT-700iW Barcode Printer in Jessor
Revolutionary RT700iW Series is ready to challenge your perception to barcode printing.The GoDEX RT700iW and the GoDEX RT730iW are manufactured to deliver the highest commitment for retail, warehouses, logistic and transportation, government and administration, and health care applications.USB2.0, USB host, Serial and parallel port, Ethernet, optional WIFI, and Bluetooth module for multiple applications.32 MB SDRAM…
Interested in this product?
Request a quote
Tell us the quantity and delivery city, and we'll reply within working hours.
- CategoryDesktop Printers
- BrandGodex
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
Revolutionary RT700iW Series is ready to challenge your perception to barcode printing.
The GoDEX RT700iW and the GoDEX RT730iW are manufactured to deliver the highest commitment for retail, warehouses, logistic and transportation, government and administration, and health care applications.
- USB2.0, USB host, Serial and parallel port, Ethernet, optional WIFI, and Bluetooth module for multiple applications.
- 32 MB SDRAM and 128 MB Flash memory - including 60 MB available for user.
- Color TFT LCD with navigation button for intuitive operation.
- 203 dpi (8 dots/mm) and 300 dpi (12 dots/mm) resolutions; print speed is up to 7"/177 mm per second.
- Supports 300-meter ribbon and 10-inch diameter label stand available for bulk printing.
- Free GoLabel label design software.
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 7 IPS (177 mm/s)** |
| Print Width | 4.25” (108 mm) |
| Print Length | Min. 0.16” (4 mm)**, Max. 68” (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | Flash: 128 MB Flash (60 MB for user storage) SDRAM: 32 MB SDRAM |
| Sensor Type | Adjustable reflective sensor (full range) Fixed transmissive sensors, central aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.008” (0.20 mm) Max.** Label Roll Diameter: Max. 5” (127 mm) Core Diameter: 1” (25.4 mm), 1.5” (38.1mm) |
| Ribbon | Types: Wax, wax / resin, resin Length: 981” (300 m) Width: 1.18” Min. - 4.33” (30 mm - 110 mm) Max. Ribbon Roll Diameter: 2.67“ (68 mm) Core Diameter: 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label Design Software: GoLabel (for EZPL only) Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008 &2012? MAC? Linux DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 |
| Resident Fonts | Bitmap Fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts: 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Postnet, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, ISBT -128, Code 32 2-D Bar codes:PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code, Code 49, Codablock F , TLC 39 |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8?UTF16BE?UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB Device port (B-Type) USB Host (A-Type) Serial port : RS-232 (DB-9) IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) Parallel Port (Mini-Centronics) |
| Control Panel | Color TFT LCD with navigation button Calibration button Control key: FEED Power on/off button |
| Real Time Clock | Standard |
| Power | Auto Switching 100-240 V AC, 50-60 Hz. |
| Environment | Operation Temperature: 41°F to 104°F (5°C to 40°C) Storage Temperature : -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30 – 85 %, non-condensing. Storage: 10 - 90 %, non-condensing. |
| Agency Approvals | CE(EMC)?FCC Class A?CB?cUL?EAC? BIS?CCC |
| Dimension | Length: 11.0” (280 mm) Height: 7.3” (186 mm) Width: 8.3” (210 mm) |
| Weight | 5.9 lbs (2.7 Kg) ,excluding consumables |
| Options | Cutter module Label dispenser with label taken sensor module External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Bluetooth module (distributor install) WiFi printer server module (distributor install) |
| Note | **Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability. |
