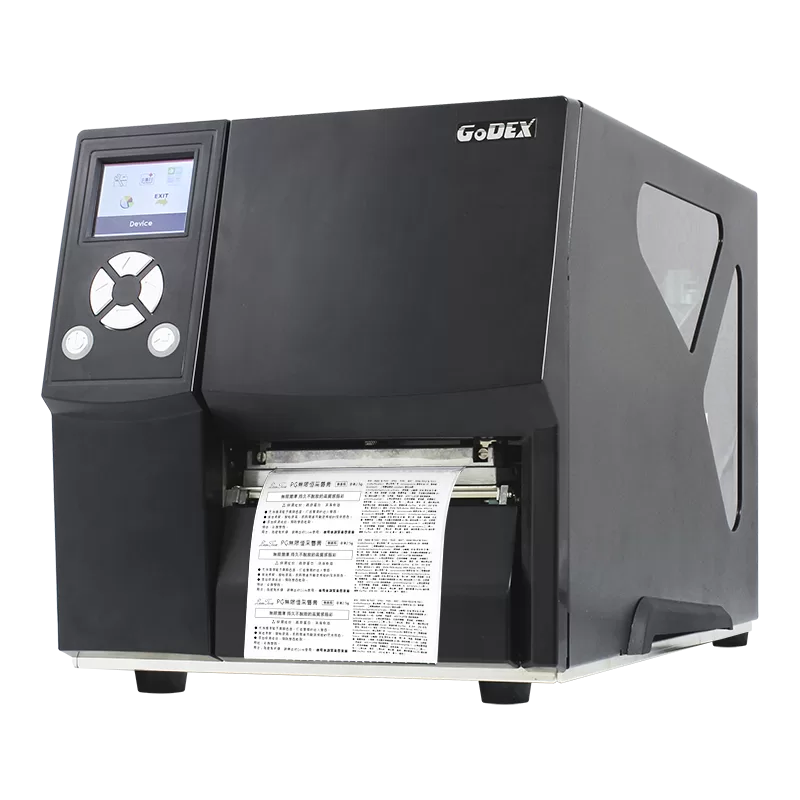

Godex ZX 420i Barcode Printer in Jessor
The best combination with Compact and Robust DesignInnovating upon extensive customer feedbacks, GoDEX ‘s most cost-effective and space-saving Industrial printers, the GoDEX ZX400/ZX400i series, integrates industrial utility with its high performance and exquisite design.USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications.32 MB SDRAM and 128 MB Flash memory…
Interested in this product?
Request a quote
Tell us the quantity and delivery city, and we'll reply within working hours.
- CategoryIndustrial Printers
- BrandGodex
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The best combination with Compact and Robust Design
Innovating upon extensive customer feedbacks, GoDEX ‘s most cost-effective and space-saving Industrial printers, the GoDEX ZX400/ZX400i series, integrates industrial utility with its high performance and exquisite design.
- USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications.
- 32 MB SDRAM and 128 MB Flash memory - including 60 MB available for user.
- Wide range media type supporting
- 203 dpi (8 dots/mm) resolutions; print speed is up to 6"/150 mm per second.
- Supports 450 meter ribbon and 8 inch diameter label (3"core) available for bulk printing.
- Free GoLabel label design software.
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 6 ips (152 mm/s) |
| Print Width | 4.25” (108mm) |
| Print Length | Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm) |
| Processor | 32-bit RISC CPU |
| Memory | Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB |
| Sensor Type | Adjustable reflective sensor and transmissive sensor, left aligned |
| Media | Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3" (76.2 mm) core Max. 6” (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm) |
| Ribbon | Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008? MAC? Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10 |
| Resident Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39 |
| Code Pages | Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8?UTF16BE?UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | • USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • USB Host (A-Type) |
| Control Panel | • Color TFT LCD with navigation button • 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) |
| Power | Auto Switching 100-240V AC, 50-60Hz |
| Real Time Clock | Standard |
| Environment | Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C) |
| Humidity | Operation 20-85%, non-condensing Storage 10-90%, non-condensing |
| Agency Approvals | CE (EMC)?FCC Class B?CB?UL?cUL?CCC |
| Dimension | Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm) |
| Weight | 23.81lbs (10.8 Kg), excluding consumables |
| Options | Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install) |
