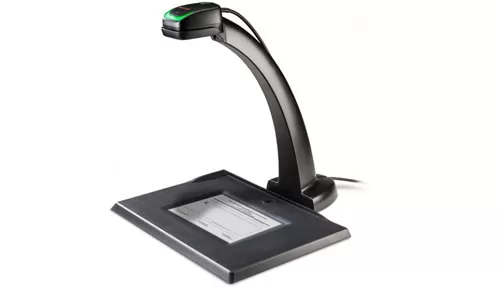

Honeywell 4850dr Document Imager in Jessor

Imager, stand and tray work together as an integrated solution, eliminating the need for adjustment due to varying document sizes.

Does your business need to streamline its recordkeeping? Consider the 4850dr document reader. It leaps past traditional document scanners to offer your business a more capable, more versatile solution that even reads barcodes.Digitize your paper documents for simple and efficient paperless processing, storage and retrieval.Captures crisp images of documents up to 8.5 by 11 inches (A4 format), regardless of the paper or text color.Use the integrated suite of easy-to-use image enhancement tools to sharpen text, improve contrast, reorient or magnify the image.Built-in auto-cropping and an array of file configuration options and compression functions ensure optimum image quality and file size for your application requirements.Scan and read all linear, stacked and 2D barcodes.We designed the 4850dr imager to give you years of uninterrupted, trouble-free operation. It features a 100% solid-state technology, so there are no moving parts that can fail or require routine maintenance.And combined with a full three-year comprehensive warranty, the 4850dr delivers unmatched reliability and a low total cost of ownership.Find out more about what your organization can accomplish with the 4850dr document reader and Honeywell workflow solutions.

OPERATIONALDimensionsIllumination: Visible white LED, 434 nm and 556 nm Aimer: Visible red VLD, 652.5 ± 7.5 nmVisual IndicatorsGreen (for good scan) or imageHost System InterfacesTWAIN, SANE, USB 2.0 Serial Port EmulationMECHANICALDimensions (LxWxH)383 mm x 340 mm x 365 mm (15.1 in x 13.4 in x 14.4 in)Weight-Imager85 g (3 oz)Weight - Stand:2 kg (4.4 lb)ELECTRICALInput Voltage4.5 to 5.25 VDCOperating Power1.75 W (350 mA @ 5 VDC)Standby Power0.5 W (100 mA @ 5 VDC)ENVIRONMENTALOperating Temperature0°C to 50°C (32°F to 122°F)Storage Temperature-20°C to 60°C (4°F to 140°F)Humidity5% to 95% relative humidity, non-condensingDrop50 drops from 1.5 m (5 ft) distance (document imager only)Environmental SealingIP40Light Levels100,000 luxESD±8 KV direct, ±15 KV airSCAN PERFORMANCEScan PatternArea image (2592 x 1944 pixel array)Scan AngleHorizontal field angle: +/-25.5° Vertical field angle: +/-20°Symbol Contrast20% minimum reflectance differencePitch, Skew, Tilt45°, 45°Image Resolution200 ppiImage Speed17 ppm minimum; 8.5 in x 11.0 in (A4) with image processing via TWAIN/SANE/SDKsImage FormatJPEG: Compression scaled form 0 to 100; BMP: Grayscale; TIFF: Binary, Binary Compressed (Group 4), GrayscaleDecode CapabilityReads standard 1D, PDF, 2D, and Postal symbologiesWarranty3 year factory warranty
