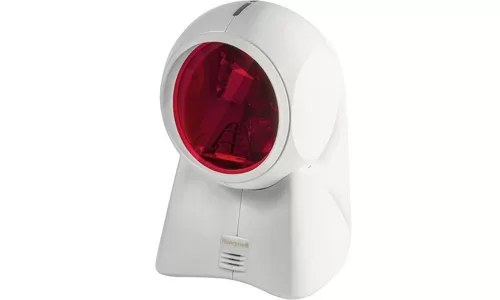

Honeywell Orbit 7190g Hybrid Presentation Scanner in Jessor

The Orbit 7190g scanner continues the proven, superior 1D laser scanning performance of Orbit series scanners but adds an area imager for seamless scanning of digital 1D, 2D and PDF codes in a single, convenient device. To speed retail checkouts, the Orbit 7190g scanner features a unique dual-modes design that is optimized for both the cashier and the customer enabling seamless product barcode scanning and scanning of digital codes off customer smartphones.

Breakthrough Hybrid TechnologyDual-Working Modes
With dual-working modes, the scanner is optimized for both scanning digital codes off customer
smartphones and scanning merchandise codes by the cashier at the register.
Superior Scanning Performance
A 20-line omnidirectional laser pattern maintains the proven 1D scanning performance of existing Orbit scanners. With leading Honeywell imaging technology, the scanner reads smartphone coupons and ID cards with ease.
Adjustable Scan Head
The award-winning shape enables handheld scanning of large, bulky items. The adjustable scan head even allows cashiers to tilt the scanner 30° for targeted scanning of larger products.
Multi-Interface Design
Automatic interface detection enables the scanner to configure itself to the appropriate interface
upon connection eliminating the tedious task of scanning programming barcodes.

MECHANICAL
Dimensions (L x W x H)
108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
Weight
410 g (14.5 oz)
ENVIRONMENTAL
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Humidity
5% to 95% relative humidity, non-condensing
Drop
Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing
Sealed to resist airborne particulate contaminants
Light Levels
Laser: 4842 Lux
Imager: 100000 Lux
ELECTRICAL
Input Voltage
5 VDC ±0.25 V
Operating Power
472 mA @ 5 V
Standby Power
255 mA @ 5 V
Host System Interfaces
USB, RS-232, Keyboard Wedge, IBM468xx (RS485)
EAS Features
EAS with interlock and integrated RF EAS antenna (EAS model)
SCAN PERFORMANCE
Scan Pattern
Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)
Scan Speed
Omnidirectional: 1120 scan lines per second
FPS: 30
Scan Angle (Imager)
Horizontal: 40.0°
Vertical: 30.5°
Symbol Contrast
35% minimum reflectance difference
Pitch, Skew
Laser: 60°, 60°
Imager: 60°, 70°
Decode Capability
Laser: Reads standard 1D, GS1 DataBar symbologies
Imager: Reads standard 1D, PDF and 2D symbologies
Warranty
Three-year factory warranty
