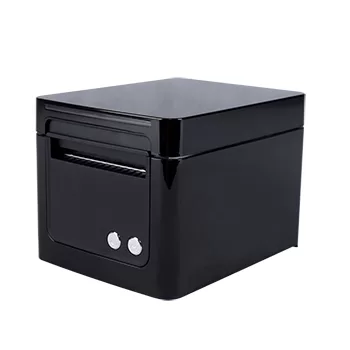

HPRT TP809 Barcode Printer in Jessor

Printing  Print Method Direct Thermal

Resolution  203dpi (8 dots/mm)

Print Speed  Max.260 mm/s

Printing Width  Max.80 mm

Interface  Standard  USB Type B, Serial Port, Ethernet

Optional  Bluetooth, Wi-Fi

Page Mode  Support

Memory RAM  16 MB

Flash  16 MB

Programming Language  ESC/POS

Fonts  Alphanumeric; Simplified Chinese, Traditional Chinese; 46 International Character Sets

Barcode  LinearBarcodes  UPC-A, UPC-E,EAN-8, EAN-13, CODE 39, ITF, CODABAR, CODE 128, CODE 93

2D Barcodes  PDF417, QR code

Graphics Supportbitmap printing with different density and user-defined bitmap printing. (Maxsize of each bitmap is 64 KB, the total size of the bitmap is 256 KB)

Sensors Standard Paper out Detector, Head-up The detector, Blackmark Detector

Option  Paper near end sensor

LED Indicator Power  Green

Busy  Blue

Paper Near End  Pink

Error  Red

Power Supply Input  AC 100V ~ 240V, 50/60Hz

Output DC 24V, 2A

Paper Paper Type  Thermal Receipt Paper

Paper Width  Max.80mm

Paper Thickness  0.056~ 0.13mm

Roll Paper Diameter  Max.Φ83 mm (O.D)

Paper Load  Toppaper loading

Paper Cut  Partialcut or Full cut

Environment  Operating  0°C ~ 45°C, 20% ~ 85% R.H,no-condensation

Storage  -20°C~ 70°C, 5% ~ 95% R.H, no-condensation

Physical Characteristics  Dimensions  165(L)—130(W)—119(H) mm

Weight 1.35 kg

Options and Accessories  USB/SerialCable, Paper roll, Power Adapter, Power Cord, CD, Quick Start Guide

Reliability  TPHlife 150 km

Cutter  2 million cuts

Software  Driver  Windows XP/ 7/ 8/ 10; POS Ready; Linux; OPOS

SDK  WinCE, Windows Mobile, Android
