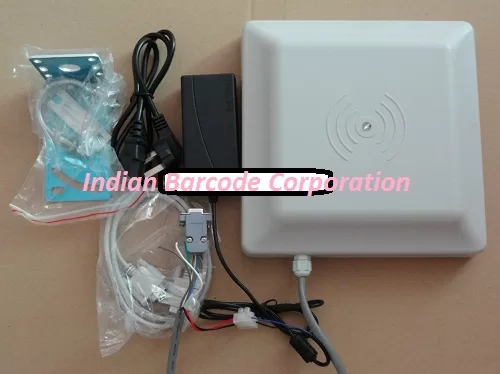

IBC-85 MID RANGE UHF RFID READER

IBC-85 MID RANGE UHF Integrated RFID READER

Vehicle Access Management

Warehouse Management

Parking Lot Management

Toll Management

Employee-Student Tracking

IBC Design and manufacturers a comprehensive range of multi-brand RFID tags and Readers for a Variety of Industries.

We have an excellent working knowledge of LF (Low Frequency), HF (High Frequency) and UHF (Ultra High Frequency) our Engineers are well equipped to design RFID Management Software to Work seamlessly in the most demanding environment.

we have deployed our solutions in a range of highly specialized vertical markets that include coal mines ,Toll Roads, Airports, Hotels, Railway-Stations, libraries, Hospitals, Textile, manufacturing, Auto Motive ,fashion Apparel ,Hospitality and others.

Model Nos.

IBC 85S & IBC 85L

Protocol

ISO 18000-6B,EPC Class 1 Gen2(ISO18000-6C)

Protection Grade

IP 65

Work Frequency

Standard ISM 865-868 MHz ,902~ 928 MHz

Frequency Hopping

FHSS

Power Output

0-30 dBm(adjustable)

Antenna

Built-In 8dBi Linear/Circular Polarized Antenna

Interface

RS 232,RS485,Wiegand 26/34(TCP/IP & Wi-Fi Optional)

Operating Mode

Answer, Active ,Trigger

Read Range

0-6 M

Write-Range

0-2m

Reading Clue

Buzzer

Input power

 100-240 V,DC +9V(Power Adapter)

Power Consumption

1W

Dimension

255*255*42 mm

N.W

1600g

G.w

2000g

Operation Temp

-25 ° C ~ +60 ° C

Storage Temp

-25 ° C ~ +80 ° C

Humidity

10-95 %

Regulatory

Complaint With CE,FCC

Additional Services

Provide Demonstration Software and SDK for Further Development
