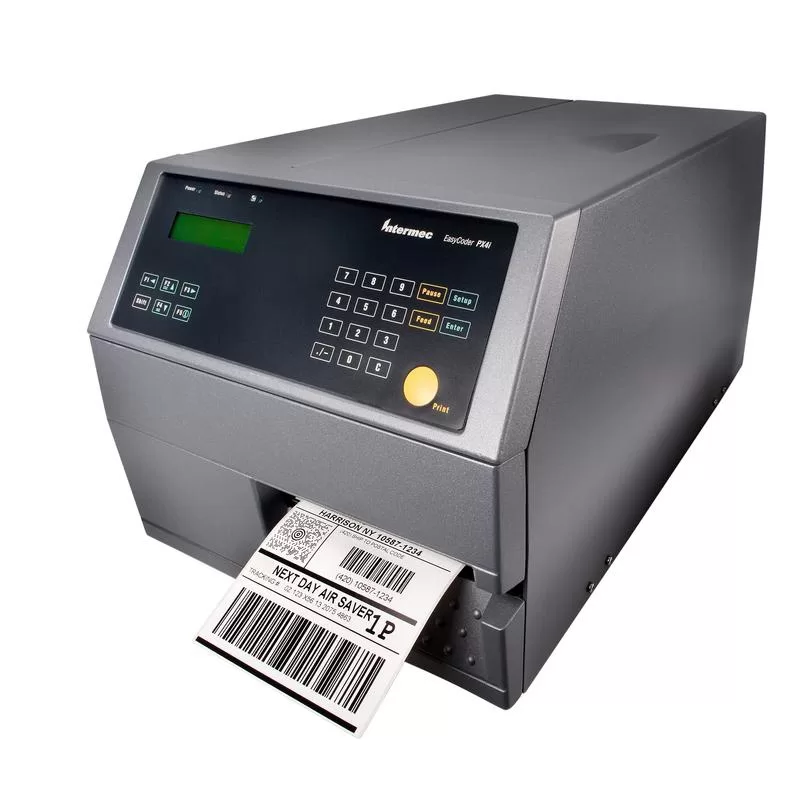

Intermec PX4i Barcode Printer

The Easy Coder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The Easy Coder PX4i features a maximum print width of 4 inches and either 203 or 300 dpi resolution print heads. The open, modular design ensures the printer is easy to adapt, maintain and service. The Easy Coder PX4i printer prints instantly from first to last label at up to 12 ips-ideal for on-demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.

The Intermec EasyCoder PX4i is also known as the IntermecTechnologies EasyCoder PX4i.

Strong, all-metal construction and superior throughput for24x7 printing in harsh industrial environments

Ideal for high volume and compliance applications the PX4iprints at 406 dpi without loss of speed

Modular design facilitates integration into automated labeling applications

Smart Printing capabilities support stand-alone printer applications, eliminating PC expense and complexity

All-in-one, user-selectable printer languages  Fingerprint/Direct Protocol (DP), IPL, ZSim, and DSim – in every printer

Secure wireless connectivity: CCX and WiFi® certified withWPA2

Integrated Ethernet, USB host, and device, and serial interface standard

Internet Protocol v6 (IPv6) support

The interchangeable print head provides a choice of print resolution

 Ethernet 10/100 Mbps

 RS-232, up to 115.2 kB/s

 Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR,RTS/CTS

 IPL: XON/XOFF, Intermec Std. Protocol

 USB 2.0

Optional:

Parallel IEEE 1284

 Industrial Interface (8 digital in/out, 4 analog relays, 1RS232/422/485 port)

 Dual Serial ports RS-232, RS-422, RS-485, and 20mA CurrentLoop, Applicator Interface

Wireless:

 IEEE 802.11 b/g

 Wi-Fi Certified, Cisco® Compatible(CCX) version 3Certified

 WEP, WPA, WPA2, 802.11x (EAP- TTLS, LEAP, PEAP, FAST),802.11i

 Multiple industrial antenna options for maximized coverage

Supported Protocols:

TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP,BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.
