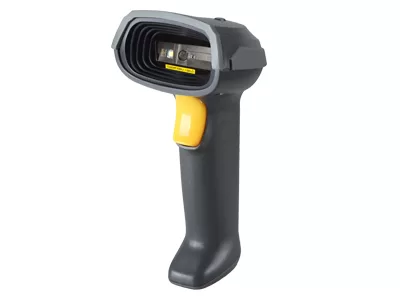

Mindeo MD2250+ Barcode Scanner in Jessor

A barcode reader is an electronic device that can read and output printed barcodes to a computer. Like a flatbed scanner, it consists of a light source, a lens, and a light sensor translating optical impulses into electrical ones.

Maximal decode resolution at 5milLong decode range up to 1.5 metersDecode all major 1D barcode symbologies including GS1 DataBarMirror surface reflection cancellationOver ten-million times for button-pressWith IP52 high performance ingress protectionPassed multiple 4.0-meters-high drop testReady for all POS systemsEasy firmware upgradeFlexible software customizationErgonomic, snappy and stylish design

5 VDC ± 0.25V500 mW (Operating); 950 mW (Max.)100 mA (Operating); 190 mA (Max.)<250¼A650nm laser diode200 times/sec±60°, ±65°, ±42° (Skew, Pitch, Roll)All major 1D barcode symbologies including GS1 DataBar variantsBeeper, LEDKeyboard wedge, RS-232, USB Keyboard, USB virtual COMHand-held, Infra-red induction for MD2250AT Plus & MD2230AT Plus9.5cm H — 6.7cm W — 15.4cm D168g, without cableStraight 2.0mRJ-45 phone jack connectorPC+TPU0° to 50°C (32° to 120°F), Operating; -40° to 60°C (-40° to 140°F), Storage5% to 95% (non-condensing)Manual (reading special barcode)Online5 mil: 40-110mm 3 mil: 5-50mm10 mil: 10-280mm 10 mil: 10-85mm13 mil: 15-315mm 13 mil: 10-150mm16 mil: 25-385mm 16 mil: 25-165mm35 mil: 145-630mm 35 mil: 145-295mmLaser safety: EN60825-1, Class 1EMC: EN 55022, EN 55024Electrical safety: EN 60950-1Drop resistance: Multiple 4.0m (13.1 ft) drops to concrete
