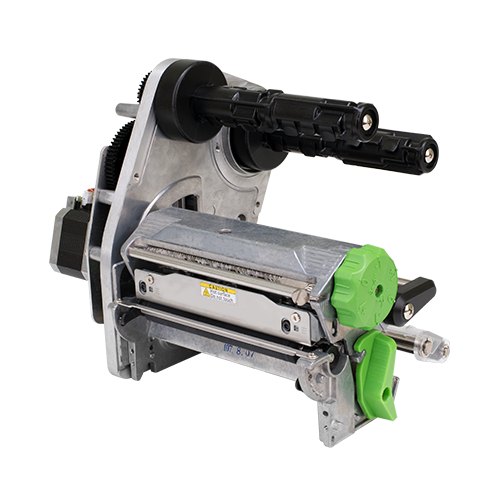

TSC MB Series 4-Inch Print Module for Label Applicators

Model: MB Series 4-Inch Print Module

TSC MB Series 4-Inch Print Module: This print module is designed for fast label throughput. It is available in two models, the MB240 and MB340 Module, with 203 dpi printing at up to 10 ips and the 300 dpi model which can print up to 7 ips. Available in 203 dpi and 300 dpi resolution.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryIndustrial Printers

BrandTSC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

TSC MB Series 4-Inch Print Module: This print module is designed for fast label throughput. It is available in two models, the MB240 and MB340 Module, with 203 dpi printing at up to 10 ips and the 300 dpi model which can print up to 7 ips. Available in 203 dpi and 300 dpi resolution. It is built for high-volume labelling in manufacturing, logistics, warehousing and distribution, running long shifts with large media and ribbon rolls.

Models in this series: MB241 Module, MB341 Module.

Buy TSC MB Series 4-Inch Print Module from Mindware

Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre, supplying genuine TSC printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.

For the best price of TSC MB Series 4-Inch Print Module in India, call 8527522688 or email gm@indianbarcode.com.

Print module for light-industry label printing and integration
Durable die-cast aluminium print mechanism in a compact footprint
203 dpi model up to 10 ips; 300 dpi model up to 7 ips
"Thermal Smart Control" printhead technology for crisp, accurate output
Ethernet, USB, USB Host and RS-232 serial; optional GPIO for applicator equipment

Hardware Specifications
Resolution	MB241 Module: 203 dpi (8 dots/mm) \| MB341 Module: 300 dpi (12 dots/mm)
Print Method	Direct thermal/Thermal transfer
Hardwire Connectivity	Ethernet; GPIO; Serial RS-232; USB; USB Host
Enterprise Printer Management	TSC Console
Type	Print module
Max. Print Speed	MB241 Module: Up to 12 ips (304.8 mm/s) @ 203 dpi \| MB341 Module: Up to 9 ips (228.6 mm/second) @ 300 dpi
Max. Print Width	MB241 Module: 4.21" (107 mm) \| MB341 Module: 4.16" (105.7 mm)
RAM	256 MB SDRAM
Flash	256 MB
Optional Cutter	Cutter
Media Specifications
Max. Media Width	0.8"-4.7" (20-120 mm)
Ribbon & Media Type	Continuous, die-cut, black mark, fan-fold, notch
Max. Ribbon Length	MB341 Module: 450 Meters
Max. Ribbon Width	MB241 Module: 450 Meters \| MB341 Module: 1.6" - 4.3" (40 - 110 mm)

Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre
Help choosing the right model, resolution and media for your labels
Installation, driver and label-software set-up, and staff training
Repairs, printheads, platen rollers and spares from our New Delhi service centre
Labels and ribbons made in our own plant to match the printer

For sales or service, call 8527522688 or email gm@indianbarcode.com.
