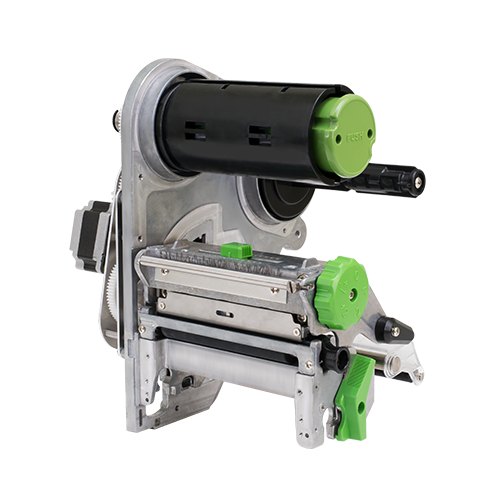

TSC MH Series 4-Inch Print Module for Label Applicators

Model: MH Series 4-Inch Print Module

TSC MH Series 4-Inch Print Module: This print module is designed for industrial duty, print and apply applications, where high speed and precision printing are required. Available in 203 dpi and 300 dpi and 600 dpi resolution.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryIndustrial Printers

BrandTSC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

TSC MH Series 4-Inch Print Module: This print module is designed for industrial duty, print and apply applications, where high speed and precision printing are required. Available in 203 dpi and 300 dpi and 600 dpi resolution. It is built for high-volume labelling in manufacturing, logistics, warehousing and distribution, running long shifts with large media and ribbon rolls.

Models in this series: MH240 Module, MH340 Module, MH640 Module.

Buy TSC MH Series 4-Inch Print Module from Mindware

Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre, supplying genuine TSC printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.

For the best price of TSC MH Series 4-Inch Print Module in India, call 8527522688 or email gm@indianbarcode.com.

Industrial-duty print module for print-and-apply applications
Available in 203 dpi (up to 14 ips), 300 dpi (up to 10 ips) and 600 dpi
512 MB Flash, 256 MB SDRAM, USB, RS-232 and internal Ethernet as standard
600-meter ribbon capacity
Optional peel-off kit with liner take-up, GPIO and cutter; peels labels down to 0.5 inch
"Thermal Smart Control" printhead technology

Hardware Specifications
Resolution	MH240 Module: 203 dpi (8 dots/mm) \| MH340 Module: 300 dpi (12 dots/mm) \| MH640 Module: 600 dpi (24 dots/mm)
Print Method	Direct thermal/Thermal transfer
Hardwire Connectivity	Ethernet; GPIO; Parallel port; Serial RS-232; USB; USB Host
Enterprise Printer Management	TSC Console; SOTI Connect (license required)
Type	Print module
Max. Print Speed	MH240 Module: Up to 14 ips (356 mm/s) @ 203 dpi \| MH340 Module: Up to 12 ips (305 mm/second) @ 300 dpi \| MH640 Module: Up to 6 ips (152 mm/s) @ 600 dpi
Max. Print Width	4.09" (104 mm)
RAM	256 MB SDRAM
Flash	512 MB
Optional Cutter	Cutter
Media Specifications
Max. Media Width	4.5" (114.3 mm)
Ribbon & Media Type	Continuous, die-cut, black mark (bottom side or top side black mark), fan-fold, notch, care label
Max. Ribbon Length	600 Meters
Max. Ribbon Width	1" - 4.5" (25.4 - 114.3 mm)
