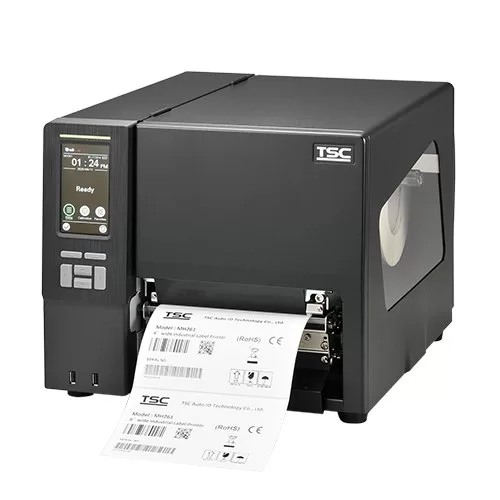

TSC MH Series 6-Inch Industrial Barcode Printer

Model: MH Series 6-Inch

TSC MH Series 6-Inch: The MH Series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high-quality labels at the fastest speeds. Available in 203 dpi and 300 dpi resolution.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryIndustrial Printers

BrandTSC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

TSC MH Series 6-Inch: The MH Series features our flagship industrial barcode label printer with premium printhead technology, fast processor, and memory capacity to print high-quality labels at the fastest speeds. Available in 203 dpi and 300 dpi resolution. It is built for high-volume labelling in manufacturing, logistics, warehousing and distribution, running long shifts with large media and ribbon rolls.

Models in this series: MH261T, MH361T.

Buy TSC MH Series 6-Inch from Mindware

Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre, supplying genuine TSC printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.

For the best price of TSC MH Series 6-Inch in India, call 8527522688 or email gm@indianbarcode.com.

6-inch version of TSC's flagship MH industrial printer (MH261T / MH361T)
Supports media widths up to 6.8 inches (MH261T)
TSC TPH Care real-time printhead health monitoring
Top or bottom black mark sensing selectable from the panel
GPIO plus optional Wi-Fi 802.11 a/b/g/n/ac with Bluetooth 4.2 combo module
Fine adjustment mechanism to avoid ribbon wrinkles
Toolless printhead and platen roller replacement

Hardware Specifications
Resolution	MH261T: 203 dpi (8 dots/mm) \| MH361T: 300 dpi (12 dots/mm)
Print Method	Direct thermal/Thermal transfer
Display	Color LCD touchscreen with buttons
Hardwire Connectivity	Ethernet; GPIO; Parallel port; Serial RS-232; USB; USB Host
Wireless Connectivity	Wi-Fi with Bluetooth
Enterprise Printer Management	TSC Console; SOTI Connect (license required)
Type	Industrial
Max. Print Speed	MH261T: 12 ips (305 mm/s) \| MH361T: 10 ips (254 mm/s)
Max. Print Width	6.61” (168 mm)
Max. Print Length	MH261T: 580“ (14,732 mm) \| MH361T: 260" (6,604 mm)
RAM	256 MB SDRAM
Flash	512 MB
Expandable Flash	microSD card reader; up to 32 GB
Optional Cutter	Heavy duty cutter
Media Specifications
Internal Label Capacity	8" (203.2 mm) OD
Max. Media Width	6.8" (172.7 mm)
Ribbon & Media Type	Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound)
Max. Ribbon Length	450 Meters
Max. Ribbon Width	2" - 7" (50.8 mm - 178 mm)
Media Core Diameter	1.5”/ 3” (38.1 mm / 76.2 mm )
Min. Label Length	0.39" (10 mm)
Construction	Die-cast print mechanism with large clear media view window
Programming Languages	TSPL-EZD
