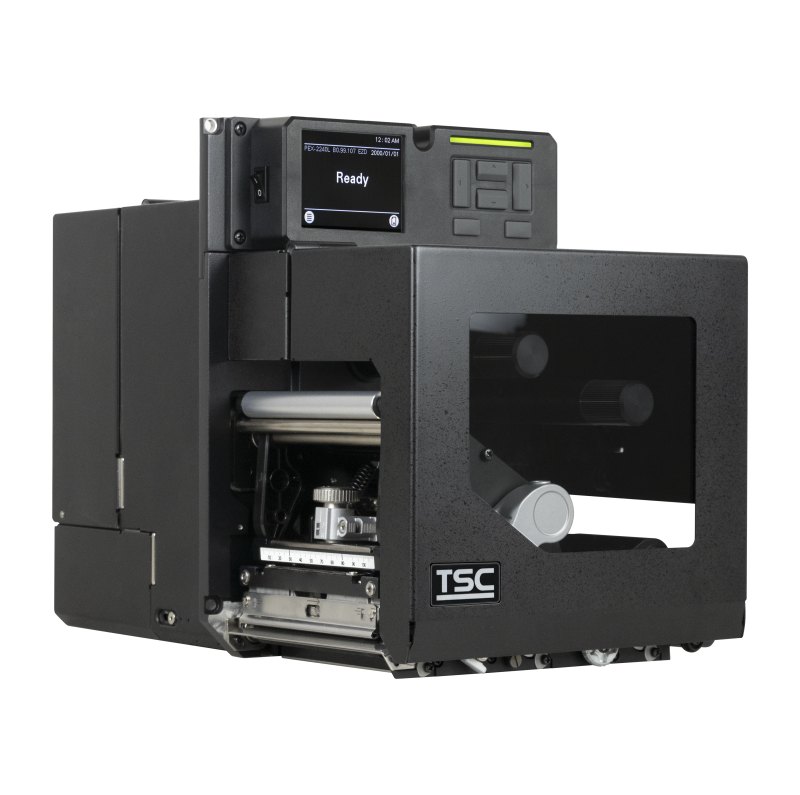

TSC PEX Series 4-Inch Print Engine
TSC PEX Series 4-Inch: This innovative print engine is designed for years of reliability, ease of use, and cost-conscious serviceability. It is designed for simple integration that can be easily integrated into just about any print and apply environment.
- CategoryIndustrial Printers
- BrandTSC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
TSC PEX Series 4-Inch: This innovative print engine is designed for years of reliability, ease of use, and cost-conscious serviceability. It is designed for simple integration that can be easily integrated into just about any print and apply environment. Available in 203 dpi and 300 dpi and 600 dpi resolution. It is built for high-volume labelling in manufacturing, logistics, warehousing and distribution, running long shifts with large media and ribbon rolls.
Models in this series: PEX-1220, PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R.
Buy TSC PEX Series 4-Inch from Mindware
Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre, supplying genuine TSC printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.
For the best price of TSC PEX Series 4-Inch in India, call 8527522688 or email gm@indianbarcode.com.
- 4-inch print engines built for label applicator integration, mountable in any orientation
- DB15 and DB25 interfaces with major brands' GPIO emulations
- Customizable firmware supports major printer languages
- Print speeds up to 18 ips; printing deviation within ±0.4 mm for small labels
- Angle-adjustable peel-off (-18 to -3 degrees); top black mark sensor
- Optional RFID and patented Ribbon Saver
- Metal chassis with MTBF up to 22,000 hours; managed via TSC Console and SOTI Connect
| Hardware Specifications | |
|---|---|
| Resolution | PEX-1220, PEX-2240L, PEX-2240R: 203 dpi (8 dots/mm) | PEX-2340L, PEX-2340R: 300 dpi (12 dots/mm) | PEX-2640L, PEX-2640R: 600 dpi (24 dots/mm) |
| Print Method | Direct thermal/Thermal transfer |
| Display | Color LCD with buttons |
| Hardwire Connectivity | PEX-1220: Ethernet; GPIO; Parallel port; Serial RS-232; USB; USB Host | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: Ethernet; Parallel Port; GPIO; Serial RS-232; USB; USB Host |
| Wireless Connectivity | PEX-1220: Bluetooth; Wi-Fi | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: Wi-Fi with Bluetooth |
| Enterprise Printer Management | TSC Console; SOTI Connect (license required) |
| Type | Print engine |
| Max. Print Speed | PEX-1220: Up to 18 ips (457 mm/s) @ 203 dpi | PEX-2240L, PEX-2240R: 457mm (18”)/second | PEX-2340L, PEX-2340R: 356mm (14”)/second | PEX-2640L, PEX-2640R: 152mm (6”)/second |
| Max. Print Width | PEX-1220: 4.09" (104 mm) | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 104 mm (4.09”) |
| Max. Print Length | PEX-1220: 1,000" (25,400 mm) | PEX-2240L, PEX-2240R: 25,400mm (1000“) | PEX-2340L, PEX-2340R: 11,430mm (450“) | PEX-2640L, PEX-2640R: 2,540mm (100“) |
| RAM | PEX-1220: 512 MB SDRAM | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 512MB DDR2 RAM memory |
| Flash | PEX-1220: 512 MB | PEX-2240L, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 512MB Flash memory | PEX-2240R: 512MB DDR2 RAM memory |
| Expandable Flash | PEX-1220: micro SD card reader, up to 32 GB | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: Micro SD card reader for memory expansion, up to 32GB |
| Media Specifications | |
| Max. Media Width | PEX-1220: 4.5" (114.3 mm) | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 118 mm (4.64”) |
| Ribbon & Media Type | PEX-1220: Continuous, die-cut, black mark, fan-fold, notch (outside wound) | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: Continuous, die-cut, black mark, fan-fold, notch |
| Max. Ribbon Length | PEX-1220: 600 Meters | PEX-2240L, PEX-2240R: 600m | PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 600 m |
| Max. Ribbon Width | PEX-1220: 1" - 4.5" (25.4 - 114.3 mm) | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: 114.3 mm (4.5”) |
| Construction | PEX-1220: Heavy duty die-cast aluminum design | PEX-2240L, PEX-2240R, PEX-2340L, PEX-2340R, PEX-2640L, PEX-2640R: Die-cast based print mechanism |
| Programming Languages | TSPL-EZD |
- Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre
- Help choosing the right model, resolution and media for your labels
- Installation, driver and label-software set-up, and staff training
- Repairs, printheads, platen rollers and spares from our New Delhi service centre
- Labels and ribbons made in our own plant to match the printer
For sales or service, call 8527522688 or email gm@indianbarcode.com.
