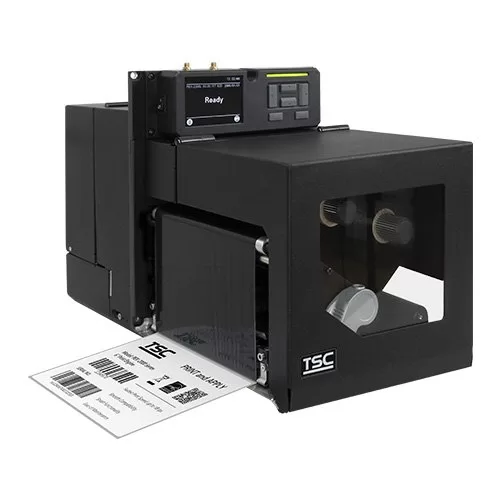

TSC PEX Series 6-Inch Print Engine

Model: PEX Series 6-Inch

TSC PEX Series 6-Inch: The 6-inch PEX-2000 Print Engines easily integrate into any label applicator for smooth daily operations, reducing integration effort and speeding up time-to-market. Available in 203 dpi and 300 dpi resolution.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryIndustrial Printers

BrandTSC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

TSC PEX Series 6-Inch: The 6-inch PEX-2000 Print Engines easily integrate into any label applicator for smooth daily operations, reducing integration effort and speeding up time-to-market. Available in 203 dpi and 300 dpi resolution. It is built for high-volume labelling in manufacturing, logistics, warehousing and distribution, running long shifts with large media and ribbon rolls.

Models in this series: PEX-2260R, PEX-2260L, PEX-2360R, PEX-2360L.

Buy TSC PEX Series 6-Inch from Mindware

Mindware (Indian Barcodes) is an authorised TSC reseller and TSC service centre, supplying genuine TSC printers across India with installation, training and after-sales service from our New Delhi service centre, plus labels and ribbons made in our own plant.

For the best price of TSC PEX Series 6-Inch in India, call 8527522688 or email gm@indianbarcode.com.

6-inch print engines for label applicators, mountable in any orientation
14% smaller rear section for a compact footprint
Supports 25-pin and 15-pin D-Sub connectors and major brands' GPIO emulations
Adjustable metal peel-off module (-18 to -3 degrees)
Optional RFID encoding module with long-distance back-feed to overstrike bad tags
Full metal chassis, MTBF up to 22,000 hours, magnetic media-door lock
Quick-release printhead and easily removable rear chassis for servicing

Hardware Specifications
Resolution	PEX-2260R, PEX-2260L: 203 dpi (8 dots/mm) \| PEX-2360R, PEX-2360L: 300 dpi (12 dots/mm)
Print Method	Direct thermal/Thermal transfer
Display	Color LCD with buttons
Hardwire Connectivity	Ethernet; Parallel Port; GPIO; Serial RS-232; USB; USB Host
Wireless Connectivity	Wi-Fi with Bluetooth
Enterprise Printer Management	TSC Console; SOTI Connect (license required)
Type	Print engine
Max. Print Speed	PEX-2260R, PEX-2260L: 356mm (14”)/second \| PEX-2360R, PEX-2360L: 305mm (12”)/second
Max. Print Width	168 mm (6.61”)
Max. Print Length	PEX-2260R, PEX-2260L: 14,732mm (580“) \| PEX-2360R, PEX-2360L: 6,604mm (260“)
RAM	512MB DDR2 RAM memory
Flash	512MB Flash memory
Expandable Flash	Micro SD card reader for memory expansion, up to 32GB
Media Specifications
Max. Media Width	180mm (7.09“)
Ribbon & Media Type	Continuous, die-cut, black mark, fan-fold, notch
Max. Ribbon Length	600m
Max. Ribbon Width	180mm (7.1")
Construction	Die-cast based print mechanism
Programming Languages	TSPL-EZD
