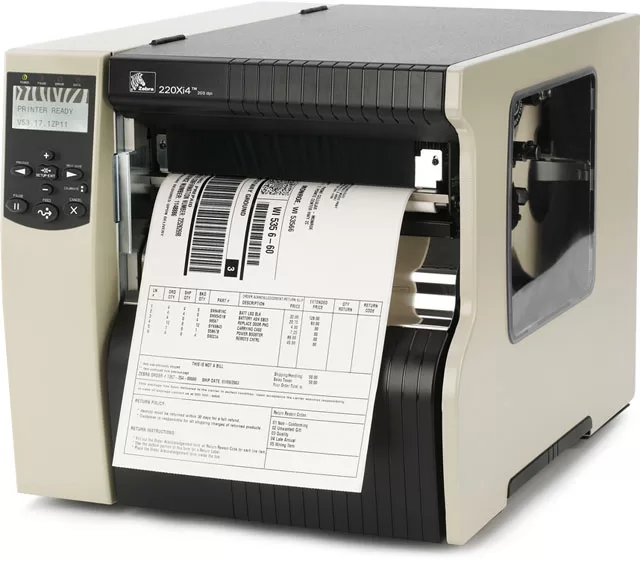

Zebra 220Xi4 Label Printer in Jessor

Built for high-volume applications and harsh environments, Zebra's Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning. Designed for fast printing of chemical drum and other wide-label applications, count on high-performance when you trust the rugged reliability of this thermal label printer.

• Print methods: Thermal transfer or direct thermal
• Construction: 12-gauge steel frame
• Single 32 bit 133 Mhz RISC processor
• 16 MB SDRAM; 8 MB non-volatile Flash memory
• Automatic media/ribbon sensing capability
• Improved head test for element out
• Auto calibration
• Clear media side door for ease of supplies monitoring
• 300 unique darkness settings
• RS-232, Parallel ports
• USB 2.0 port
• Internal ZebraNet 10/100 PrintServer
• ZPL or ZPL II Programming Language
• XML enabled printing
• Mirror feature allows user-defined printer configurations to be retrieved from the network
• Create and design customizable printer LCD menus
• Large (240W x 128H pixels), multilingual, backlit, graphical LCD display
• Transmissive and reflective media sensors
• Multi-level Element Energy Equalizer (E3) for superior print quality
• Unicode - Compliant
• Intelligent printhead

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory

• 16 MB SDRAM
• 8 MB Flash

Print width: 8.5" (216mm)
Print length: 150" (3810mm) using continuous media
Print speed: Up to 10" per second (203 dpi)
Media sensors: Reflective, Transmissive

Media Characteristics:

Maximum label and liner width: 8.8" (224mm)
Minimum label and liner width: 4.25" (108mm)
Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media
Maximum roll diameter: 8" (203mm)
Core diameter 3.0" (76mm)
Media thickness: .003" (.076mm) to .012" (.305mm)
Media types: continuous, black mark, roll-fed, die-cut, fanfold
