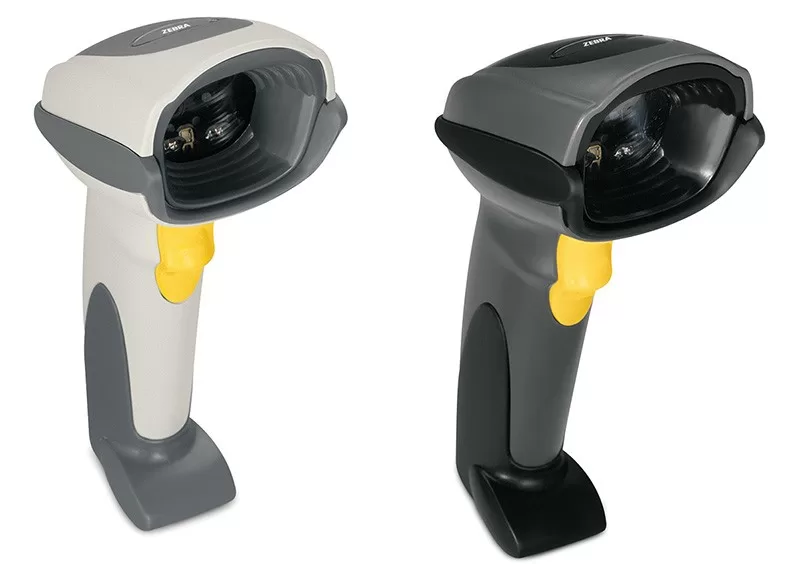

Zebra DS6700 1D/2D Imager Scanner in Jessor

PHYSICAL CHARACTERISTICS

Dimensions:

6.55 in. H x 4.72 in. L x 2.82 in. W 16.6 cm H x 11.9 cm L x 7.1 cm W

Weight:

6.4 oz. (182 g)

Voltage and Current:

5 +/-10%VDC @ 350 mA

Colour:

Cash Register White (shown) or Twilight Black

PERFORMANCE CHARACTERISTICS

Light Source:

Aiming: 650 nm laser diode Illumination: 630 nm LED

Field of View: (Vertical x Horizontal)

SR - Standard range: 34° V x 43° H DC - Document capture: 35° V x 44° H

Roll / Pitch / Yaw:

SR - Standard range: 360°, ±65°, ±60° DC - Document capture: 360°, ±65°, ±60°

SYMBOLOGY DECODE CAPABILITY

1-D:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2-D:

MaxiCode, DataMatrix (ECC 200), QR Code and Aztec

Print Contrast:

25% minimum reflectance

Motion Tolerances:

Horizontal velocity: 5 in. (12.7 cm) per second

Interfaces Supported:

DS6707: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) DS6708: Includes above plus IBM 468x/469x, keyboard wedge and Synapse connectivity.

Note: National Drug Codes (NDC) can be encoded in various symbologies. The DS6708-DL can be programmed to parse these codes using Advanced Data Formatting (ADF) rules.

IMAGING CHARACTERISTICS (DS6707 ONLY)

Image (Pixels):

1.3 Megapixel: 1280 pixels H x 1024 pixels V

Graphics Format Support:

Images can be exported as Bitmap, Jpeg, and Tiff

Image Transfer Speed:

USB 1.1: Up to 12 Megabits/second RS232: Up to 115 kb baud rate

Image Transfer Time:

Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb

Imaging Distance: (Vertical x Horizontal)

Document Sizes:

Minimum Distance (Approximate)

2 1/8 x 3 3/8 in. (5.4 x 8.6 cm) 4 x 6 in. (10.2 x 15.2 cm) 5 x 7 in. (12.7 x 17.8 cm) 8 x 11 in. (21.6 x 28 cm)

2.4 in. (6.1 cm) 5.7 in. (14.5 cm) 6.9 in. (17.5 cm) 11.9 in. (30.2 cm)

Ranges are from the noise of the scanner and are based on DC Document Capture focus only.

*Note: Imaging characteristics only apply to the DS6707. The DS6708 does not support image transfer

USER ENVIRONMENT

Sealing:

IP41 (Water and Dust Resistant)

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop Specifications:

Withstands multiple 6 ft. (1.8m) drops to concrete

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

REGULATORY

Electrical Safety:

UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1

Laser Safety:

EN60825-1:1994 +A1: 2002 +A2 :2001, IEC60825-1, 21CFR1040.10 and 21CFR1040.11, CDRH Class II, IEC Class 2

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24; Medical electrical equipment: EN60601-1-2: 2002

Environmental:

Compliant with RoHS directive 2002/95/EEC

Mounting Options (Accessories)

Intellistand with adjustable height: 5.10 in. (12.7.25.4 cm) and adjustable angle: 0°90° Desktop and wall-mount holders are also available.

Power Supplies:

Power supplies are available for applications that don't supply power over the host cable.
