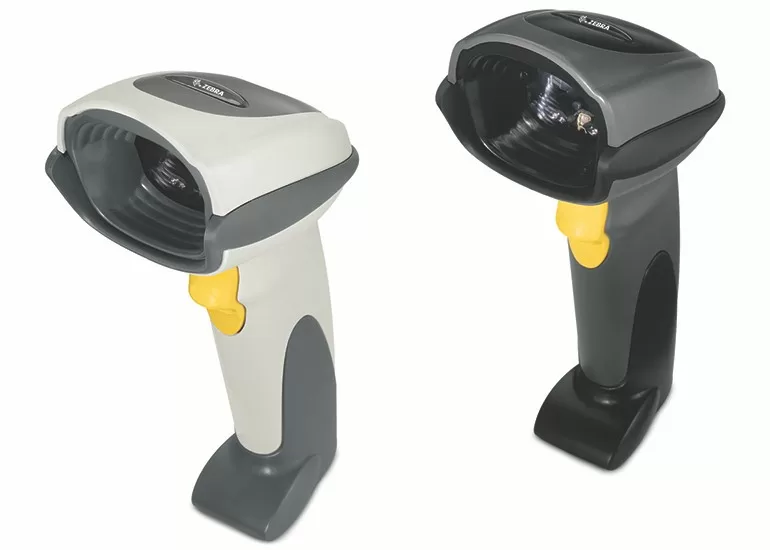

Zebra DS6708-DL Handheld Scanner

PHYSICAL CHARACTERISTICS

Dimensions:

6.55 in. H x 4.72 in. L x 2.82 in. W
16.6 cm H x 11.9 cm L x 7.1 cm W

Weight:

6.4 oz. (182 g)

Voltage and Current:

5 +/-10%VDC @ 350 mA

Color:

Cash Register White (shown) or Twilight Black

PERFORMANCE CHARACTERISTICS

Light Source:

Aiming: 650 nm laser diode Illumination: 630 nm LED

Field of View:
(Vertical x Horizontal)

DL: 34° V x 43° H

Roll / Pitch / Yaw:

DL: 360°, ±65°, ±60°

SYMBOLOGY DECODE CAPABILITY

1-D:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, Code 128, GS1DataBar (formerly UCC/EAN 128), Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2-D:

MaxiCode, DataMatrix (ECC 200), QR Code and Aztec

Print Contrast:

25% minimum reflectance

Motion Tolerances:

Horizontal velocity: 5 in. (12.7 cm) per second

Interfaces Supported:

DS6708: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces; IBM 468x/469x and keyboard wedge

Note: National Drug Codes (NDC) can be encoded in various symbologies. The DS6708-DL can be programmed to parse these codes using Advanced Data Formatting (ADF) rules.

USER ENVIRONMENT

Sealing:

IP41 (Water and Dust Resistant)

Operating Temperature:

32° to 122° F / 0° to 50° C

Storage Temperature:

-40° to 158° F / -40° to 70° C

Humidity:

5% to 95%, non-condensing

Drop Specifications:

Withstands multiple 6 ft. (1.8m) drops to concrete

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

REGULATORY

Electrical Safety:

UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1

Laser Safety:

EN60825-1:1994 +A1: 2002 +A2 :2001, IEC60825-1, 21CFR1040.10 and 21CFR1040.11, CDRH Class II, IEC Class 2

EMI/RFI:

FCC Part 15 Class B, ICES-003 Class B, CISPR 22, CISPR 24; Medical electrical equipment: EN60601-1-2: 2002

Environmental:

Compliant with RoHS directive 2002/95/EEC

Mounting Options
(Accessories):

Intellistand with adjustable height: 5.10 in. (12.7.25.4 cm) and adjustable angle: 0°90°
Desktop and wall-mount holders are also available.

Power Supplies:

Power supplies are available for applications that don't supply power over the host cable.
