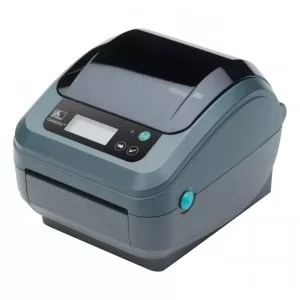

Zebra GX420D Barcode Printer in Jessor

he direct thermal Zebra GX420d is extra compact to fit incongested workspaces and produces 203 dpi print resolution at speeds up to 6ips. The GX420d features a wide range of options including 802.11b/g orBluetooth wireless connectivity and 10/100 Ethernet, in addition to standardUSB/serial/parallel. Increase your media choices and application flexibilitywith the cutter, peeler, and adjustable black line sensor options.

The GX420d printer's double-walled casing is made of ABS (acrylonitrile butadiene styrene), which helps resist impact. An open-access design facilitates media loading. The printer automatically detects installed media and calibrates to the media type and length for accurate printing. A reflective sensor allows the printer to identify the gaps, holes, notches, or black marks between labels to print the labels accurately. A transmissive sensor enables it to detect when a roll of media has run out. The auto-detectable power adapter can accept AC power between 100 and 240 volts. This printer is suitable for use with the black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, or tag stock media (all sold separately). The maximum outside diameter for rolls is 5".

The Zebra GX420d monochrome desktop direct thermal label printer comes equipped with parallel, serial, and USB ports, prints 6" per second in black at 203 dpi, and can be used to print labels, tags, receipts, or other media up to 4.09" wide. Direct thermal printers use heat instead of ink and are typically smaller, quieter, faster, and more energy-efficient than dot-matrix printers. The GX420d has a maximum print speed of 6" per second at 203 dpi (dots per inch) and prints label up to 39 long. The 32-bit processor combined with the 8 MB of SDRAM memory and 4 MB of flash memory offers fast first label printing with extensive media graphics. Parallel, serial, and USB ports allow connectivity to a computer or other devices. EPL and ZPL programming languages are standard.

Resolution

203 dpi (8 dots/mm)

Memory

8 MB SDRAM; 4 MB flash

Print Width

4.09" maximum

Print Length

39"

Print Speed

6"/second

Media Sensors

Reflective, transmissive

Label and Liner Width Range

0.75" to 4.25"

Label and Liner Length Range

0.38" to 39"

Maximum Roll Diameter

5"

Core Diameter

0.5", 1.0", and 1.5"

Media Thickness Range

0.003" to 0.0075"

Media Types

Black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Operating Temperature

40 to 105 degrees F

Operating Humidity

10 to 90 percent non-condensing

Storage Temperatures

-40 to 140 degrees F

Storage Humidity

5 to 95 percent non-condensing

Voltage and Frequency

Auto-detecting 100-240 VAC, 50-60 Hz

Dimensions

6 x 6.75 x 8.25 inches (H x W x D)*

Weight

3.1 lb.
