Zebra LS1203-HD Scanner
Zebra LS1203-HD handheld scanner is designed for electronics manufacturers who need to scan small, high density 1D barcodes on PCB assemblies for the track, trace, quality, and other applications.
Interested in this product?
Request a quote
Tell us the quantity and delivery city, and we'll reply within working hours.
- CategoryHandheld Barcode Scanners
- BrandZebra
- Warranty1 year
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
Zebra LS1203-HD handheld scanner is designed for electronics manufacturers who need to scan small, high density 1D barcodes on PCB assemblies for the track, trace, quality, and other applications. Single board construction and a durable scan element significantly reduce downtime and repair costs, and multiple interfaces help ensure connectivity to your system today and tomorrow.
Designed for electronics manufacturers who need to scan small, high-density 1D barcodes on PCB assemblies for track, trace, quality, and other applications, the LS1203-HD provides the performance and features needed to boost productivity day in and day out. Easy and comfortable to use, this high-value cost-effective scanner offers reliability and investment protection.
FUTURE-PROOF AND DURABLE TO ITS CORE
With a single board construction and durable scan element, the LS1203-HD can easily stand up to daily use and those inevitable drops. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow™s POS system.

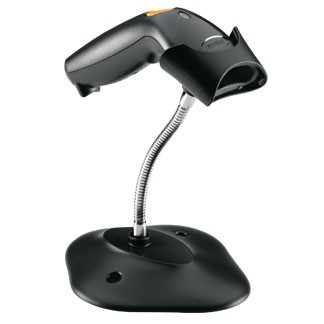

LS1203-HD Scanner
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Dimensions: | 2.4 in. H x 7.1 in. L x 2.4 in. W 6.2 cm H x 18 cm L x 6 cm W |
| Weight (w/o cable): | Approximately 4.3 oz. (122 g) |
| Voltage & Current: | 5 +/-10%VDC @ 100 mA (Stand by: <35 mA) |
| Power Source: | Host power or external power supply |
| Color: | Twilight Black |
| PERFORMANCE CHARACTERISTICS | |
|---|---|
| Scanner Type: | Bi-directional |
| Light Source (Laser): | 650nm laser diode |
| Scan Rate: | 100 scans per second |
| Typical Working Distance: | See decode zone |
| Print Contrast Min.: | 30% minimum reflectance |
| Roll (Tilt):1 | ± 30° from normal |
| Pitch:2 | ± 65° |
| Skew (Yaw):3 | ± 60° |
| Decode Capability: | UPC/EAN, UPC/EAN with Supplementals, GS1-128 (formerly UCC/EAN 128), Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1DataBar (formerly RSS), Chinese 2 of 5 |
| Interfaces Supported: | RS-232; Keyboard Wedge; USB |
| USER ENVIRONMENT | |
|---|---|
| Operating Temp.: | 32° to 122° F/0° to 50° C |
| Storage Temp.: | -40° to 158° F/-40° to 70° C |
| Humidity: | 5% to 95% relative humidity, non-condensing |
| Drop Specs: | Withstands multiple 5 ft./1.524m drops to concrete |
| Ambient Light Immunity | Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight |
| Beeper Volume: | User-selectable: three levels |
| Beeper Tone: | User-selectable: three tones |
| Electrostatic Discharge (ESD): | Conforms to 15 kV air discharge and 8 kV of contact discharge |
