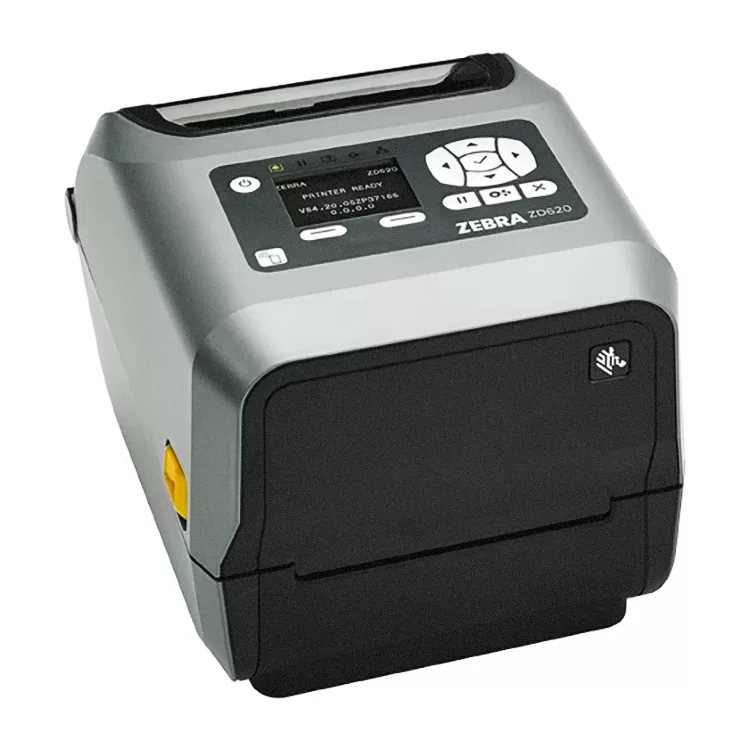

Zebra ZD620 Thermal Transfer Printer

MAXIMUM PRINT QUALITY, EFFICIENCY AND MANAGEABILITY

When print quality, productivity, application flexibility and management simplicity matter, the Zebra ZD620 delivers. The next generation in Zebra’s desktop printer line, the ZD620 replaces Zebra’s popular GX Series and ZD500 printers, rising above conventional desktop printers with premium print quality and state of the art features. Available in direct thermal, thermal transfer and healthcare models, the ZD620 meets a wide variety of application requirements. It offers the most standard features of any Zebra desktop printer, including an optional 10-button user interface with a color LCD that takes all the guesswork out of printer setup and status. Link-OS® and Zebra’s powerful Print DNA tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration. The Zebra ZD620 — the print speed, print quality and manageability you need to keep your operations moving forward.

New Five LED Status Icons Take the Guesswork Out of Printer Status

The three-button user interface with five LED status icons replaces the single button/single light interface common in desktop printers. Users can instantly see what’s needed to keep printers up and running, from replenishing media to resolving printer issues.

Configuration is a Snap with the Optional Color LCD and 10-Button User Interface

It’s easy to set up and configure the ZD620 with the optional 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted.

DEPLOYMENT AND APPLICATION FLEXIBILITY

Backwards Compatibility with Virtually any Existing Printer

Whether you are currently using a Zebra or competitive printer, can use the same label formats and applications you’re using today. The ZD620 supports both EPL and ZPL printer languages. And with on printer Virtual Devices, part of Zebra’s Print DNA suite of tools and utilities, the ZD620 can use languages normally associated with other printer brands.

Comprehensive Connectivity Options

You can connect the ZD620 to your existing wired and wireless networks, or directly to any PC. Every ZD620 comes with Ethernet, Serial, USB 2.0 and USB Host, as well as Bluetooth Low Energy (BLE), which enables printing from any iOS device.

PRINT WIDTH

4.09 in./104 mm for 203 dpi

4.27 in./108 mm for 300 dpi

MAXIMUM PRINT SPEED

4”/102 mm per second

4”/102 mm per second

COMMUNICATION METHODS

USB v2.0 (Standard)

Bluetooth Low Energy (Standard)

RS-232 Serial (Standard)

10/100 Ethernet (Standard)

Wireless: 802.11ac with Bluetooth 4.1 (option)

PRINT RESOLUTION

203 dpi/8 dots per mm

300 dpi/12 dots per mm (optional)

MEDIA SENSORS

Full width, movable reflective/black mark sensor;

Multi-position transmissive/gap sensor
