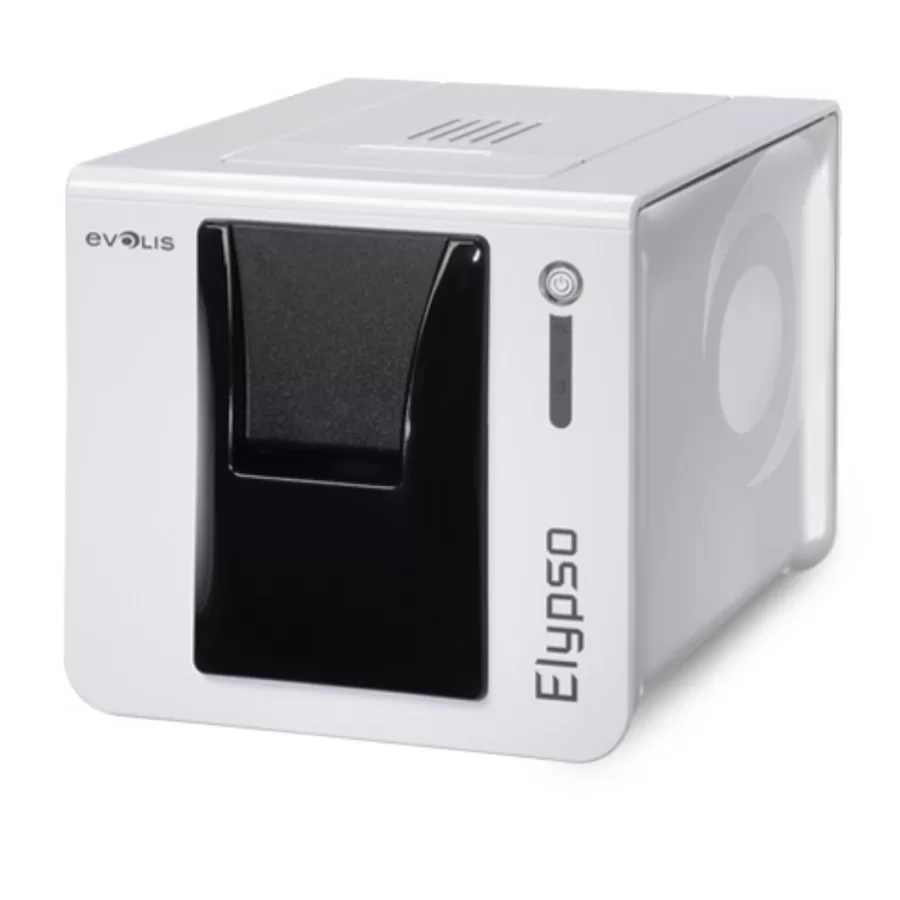

Evolis Elypso ID Card Printer

The Elypso printer was designed for all your individual plastic card printing and personalization needs: monochrome or color, with multiple encoding options.

 Specially developed for use at customer-facing counters, Elypso fits seamlessly with your existing systems and is your best choice for instant card personalization.

Calypso is ideal for instant issuance of:

·Payment cards

· Transit passes

· Loyalty cards/gift cards

· Healthcare cards

General features

 direct-to-card dye-sublimation/Resin thermal transfer

 Edge-to-edge printing, single-sided, upgrade kit for dual-sided printing as an option

 Standard 300 x 300 dpi resolution

 Customizable 300 x 600 dpi resolution (color and monochrome printing) or 300 x 1200 dpi resolution (monochrome printing only)

 32 MB memory (RAM) standard - optional 64 MB1

Printing performances

 Single side :

 Color (YMCKO): 20.2 s per card

 Monochrome: 6.5 s per card

 Dual side (YMCKO-K): 27.3 s per card

 Interfaces

 USB (1.0, 1.1, 2.0, 3.0), cable supplied

 Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

 802.11b/g wireless connection as an option

Card management and specifications

Manual feeder: card to card printing

Reject tray: 30 cards (0.76 mm - 30 mil) asan option

Card thickness: 0.50 to 1.25 mm (20 to 50mil), no gauge adjustment, case by case for the 0.25 mm/10 mil plastic cards

Card types:

PVC cards

Composite PVC cards

PET cards

ABS cards1

Specially varnished cards1

Card format: ISO CR80 - ISO 7810 (53.98 mmx 85.60 mm)

Additional encoding modules

Available modules:

Magnetic stripe encoder ISO 7811 HiCo/LoCo,JIS2

Smart contact station ISO 7816-2

Contact smart card encoder - PC/SC, EMV2011-1

Contactless smart card encoder - ISO14443A, B, ISO15693, Mifare, DESFire, HID iCLASS, UHF (standard compliance: EPCC1 Gen2 / ISO18000-6C ETSI EN 302 208 or FCC part 15.247)

Other specific encoders upon request

Internal USB or IP ports

Options can be combined

Factory-installed or installed on-site

Safety

Support for Kensington® security lock

Data encryption for magnetic encoding1

Display

Printer LEDs

Color touch screen as an option

Graphical notifications from the printer2: cleaning alerts, empty/low-level ribbon alert, etc.

Evolis High Trust® Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head, and the overall printer reliability, use Evolis High Trust® ribbons.

Automatic identification and setting

Delivered in a drop-in cassette for easy handling

Ribbon saver for monochrome printing
