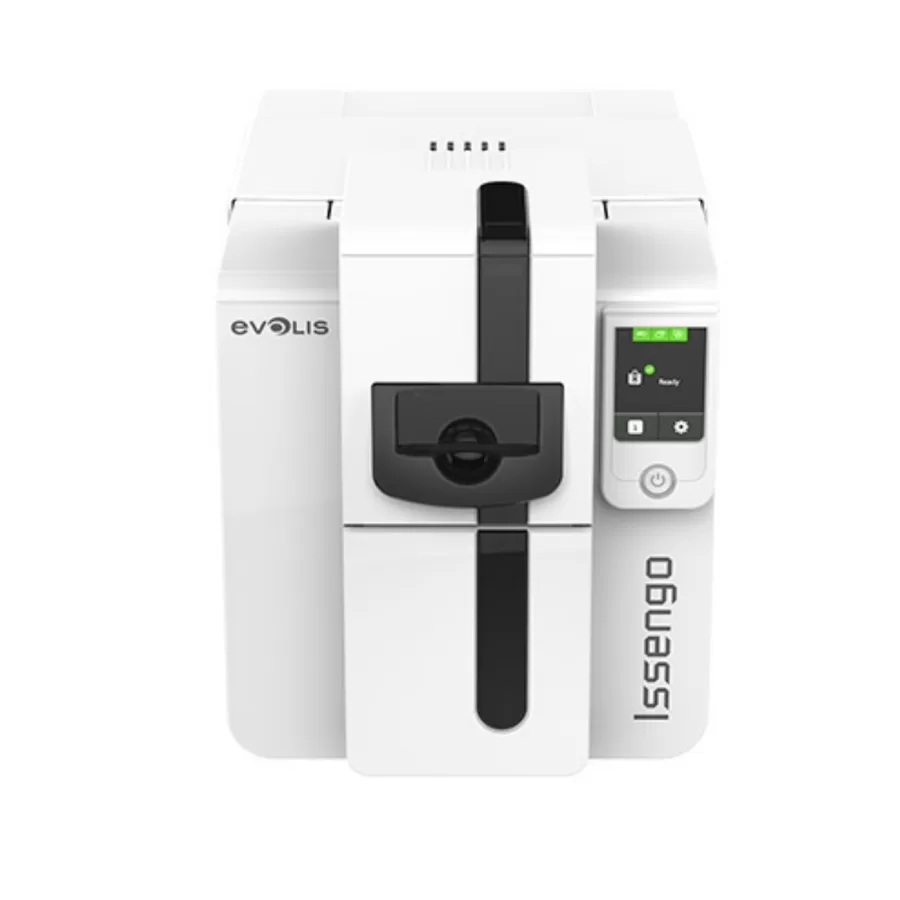

Evolis Issengo

The Issengo system combines advanced features, compacity, ease of use and seamless integration in branches. The Issengo system is compact and can fit easily into any workspace in your branch.

· Issuing issues flat debit and credit cards on-demand, and complies with international banking security standards:

· The patented Kin eclipse® process masks any residual sensitive cardholder data left on the printing ribbon,

· Electromechanical locking system prevents access to the cards, ribbon, and internal parts of the machine

· The Evolis Mosaic SDK and the embedded PC card allow secure communication with existing information systems.

General features

· direct-to-card dye-sublimation/Resin thermal transfer

· Edge-to-edge, single or dual-sided printing

· Standard 300 x 300 dpi resolution

· Customizable 300 x 600 dpi resolution (color andmonochrome printing) or 300 x 1200 dpi resolution (monochrome printing only)

· Embedded PC card

Printingperformances

· Single side:

· Color (YMCKO): 24 s per card

· Monochrome (Gold / Silver etc): 8.9 s per card

· Dual side:

· Color (YMCKO-K): 32s per card

· Monochrome (KO / KO): 24 s per card

Card management and specifications

· Feeder capacity: 100 cards (0.76 mm - 30 mil)

· Card slot for the card to card printing

· Output hopper capacity: 50 cards (0.76 mm - 30mil)

· Internal reject tray capacity : 10 cards (0.76mm - 30 mil)

· Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25 mm - 10 mil only for monochrome printing)

· Card types: PVC cards, composite PVC cards, PETcards, ABS cards1, specially varnished cards1

· Card format: ISO CR80 - ISO 7810 (53.98 mm x85.60 mm)

Interfaces

· Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

· USB A port inside the system

Additional encoding modules

· Available modules:

· Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2

· Smart contact station ISO 7816-2

· Contact smart card encoder - PC/SC, EMV 2011-1

· Contactless smart card encoder - ISO 14443A, B,ISO15693, MIFARE, DESFire, HID iCLASS

· Other specific encoders upon request

· Options can be combined

· Factory-installed or installed on-site

Safety

· Electromechanical locking system with possible activation of dual access control

· Kineclipse® process for masking the residual data left on the printing ribbon after the cards have been printed

· Data encryption (SSL/TLS)

· Support for Kensington® security lock

Display

Color touch screen display

Software

Evolis Mosaic SDK for remote supervision of the printer,while facilitating and speeding up integration and ensuring a secure communication

Evolis HighTrust® Ribbons

To maximize the quality and durability of printed cards, thelifespan of the print head, and the overall printer reliability, use Evolis HighTrust® ribbons.

· Automatic identification and setting

· Delivered in a drop-in cassette for easy handling

· Ribbon saver for monochrome printing

· List of ribbons available on www.evolis.com

Eco-friendly design, certifications, and statement of compliance

· Standby mode & reduced energy consumption

· CE, FCC, ICES, VCCI, CCC, EAC

·RoHS

Size and weight

· Size (H x W x D): 247 x 205 x 383 mm (9.72 x8.07 x 15.07)

· Weight: 6.58 kg (13.23 lbs)
