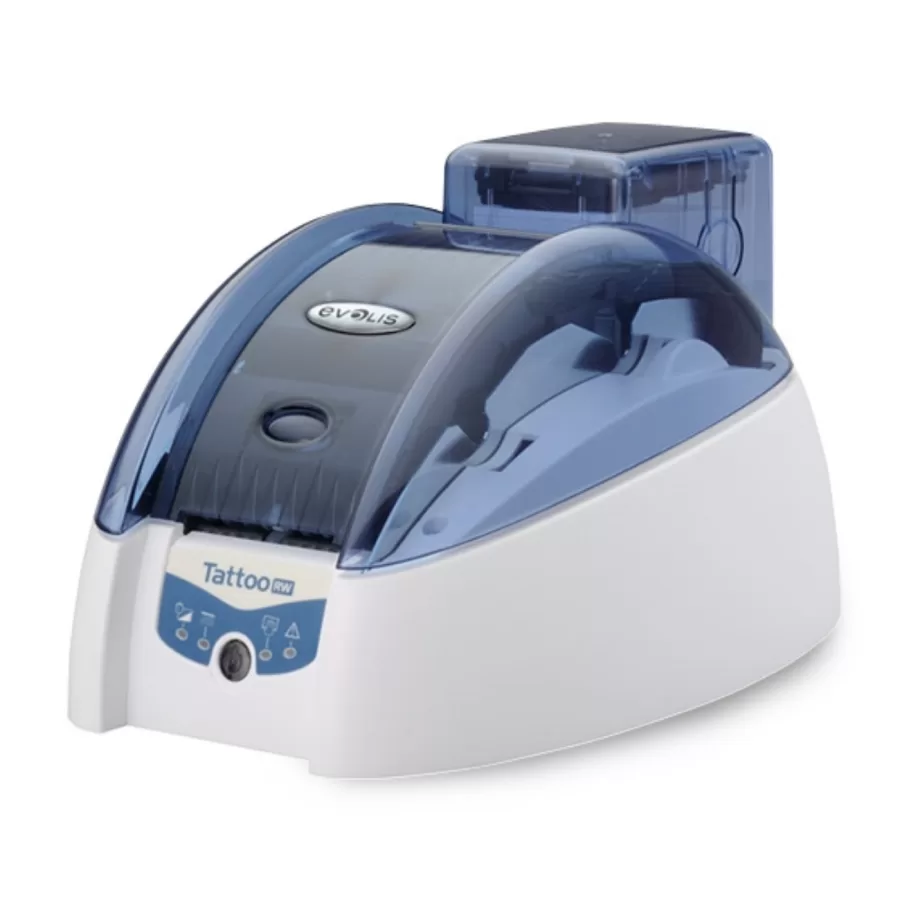

Evolis Tattoo Rewrite card printer

Tattoo RW is an Evolis printer for single-sided rewritable cards.

It effortlessly matches all your expectations when it comes to flexibility, affordability, sustainable development, and regular data updates. Tattoo RW is the ultimate solution for your temporary badges and cards that require regular updates. With Tattoo RW, your cards are updated whenever required, while the same card can be erased, revised, and printed anew up to 500 times.

General Features

· Direct thermal printing and erasing on rewritable material

· Maximum print area: 48 mm x 76 mm (1.89™™ x 2.99)

· 300 dpi print head for premium quality printing (11.8 dots/mm)

· 16 MB RAM

· feeder with a capacity of 100 cards (0.76 mm or 30 mils)

· Detachable output hopper with a capacity of 15 cards (0.76 mm or 30 mils)

· 1-Button and 4-LED control panel

· White body, brilliant blue cover

Encoding options

HiCo/LoCo Magnetic stripe encoder ISO 7811 or JIS2

Contactless encoder ISO14443A & B, Mifare, DESFire (USB connection)

Erasing & Printing performances

8 seconds (manual)

12 seconds (card feeder)

3-Track ISO magnetic encoding: 4 seconds per card

Card management and specifications

· Manual card insertion and delivery or card-feeder insertion and delivery to the removable hopper

· Automated mode: selects a card from the feeder if no card is inserted manually

· Card thickness: 0.5 mm to 0.76 mm (20 to 30 mil)

· Card types: rewritable thermochromic material Mitsubishi Black & Blue Ricoh upon request Other material upon request and validation

· Card format: CR-80 ISO 7810 (53.98 mm x 85.60 mm

· 2.125 x 3.37)

Supported platforms

Windows® (32/64 bits): XP SP3, Vista, W7, W8, W10

Interfaces

USB (1.0, 1.1, 2.0, 3.0), cable supplied

Ethernet

Certifications and statement of compliance

CE, FCC, ICES, VCCI, CCC, KC, BIS

EAC1

RoHS

Size and weight

Size (H x W x D):

- Without output hopper:

166 x 187 x 290 mm (6.54 x 7.36 x 11.42)

- With output hopper:

166 x 187 x 368 mm (6.54 x 7.36 x 14.49)

Weight: 2.4 kg (5.3 lbs)
