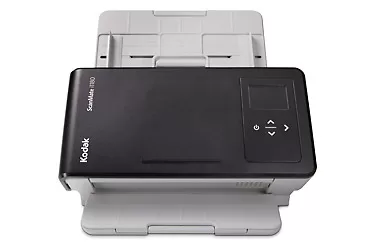

The KODAK SCANMATE i1180 Scanner transforms your paper documents into high-quality

Product Description	Intelligent, Browser-Compatible Transactional Scanner
Recommended Daily Volume	Up to 5000 pages per day
Throughput Speeds^* (portrait, letter A4 size, black and white/grayscale/color)	Up to 40 ppm at 200 dpi and 300 dpi
Maximum Document Size	215 mm x 355.6 mm (8.5 in. x 14 in.); Long Document Mode: up to 2 meters (78.7 in.)
Minimum Document Size	63.5 mm x 65.0 mm (2.5 in. x 2.56 in.); Minimum width: 50.8 mm (2.0 in.) when centered using visual guides
Paper thickness and Weight	34–413 g/m² (9 to 110 lb.) paper
Feeder	Up to 50 sheets (20 lb./80 g/m²) paper; handles small documents such as ID cards, embossed hard cards, business cards and insurance cards
Document Sensing	Ultrasonic multi-feed detection; Intelligent Document Protection
Connectivity	USB 2.0 High Speed, USB 3.0 compatible
Bundled Software	WINDOWS Bundled TWAIN, ISIS, WIA drivers; Smart Touch; KODAK Capture Pro Software Limited Edition; KODAK Capture Pro Software Trial Edition; (LINUX SANE and TWAIN Drivers available from kodak website MAC Bundled software: NEWSOFT PRESTO! PAGEMANAGER; NEWSOFT PRESTO! BizCard XPRESS; TWAIN driver¹ (available via web download only) EMC Captiva Cloud Toolkit
Recommended PC Configuration	INTEL CORE 2 Duo, 1 GHz, 2 GB RAM (WINDOWS) INTEL CORE i7 Processor @ 2.0GHz quad-core, 4 GB of RAM, USB 2.0 (MAC)
Supported Operating Systems	WINDOWS 8 and 8.1 (32-bit and 64-bit), WINDOWS 7 (32-bit and 64-bit), WINDOWS XP SP3 (32-bit and 64-bit), WINDOWS Vista SP1 (32-bit and 64-bit), WINDOWS Server 2008 64-bit and Server 2012 64-bit; LINUX UBUNTU 12.04 (LTS);¹ MAC OS v. 10.7, 10.8 or 10.9¹
Barcode Reading	One per page: Interleaved 2 of 5, Code 3 of 9, Code 128, Codabar, UPC-A, UPC-E, EAN-13, EAN-8, PDF417
File Format Outputs	Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF, PNG
Optical Resolution	600 dpi
Output Resolution	100 / 150 / 200 / 240 / 250 / 300 / 400 / 600 / 1200 dpi
Illumination	Dual LED
Image Sensor	CMOS Based CIS Scanner
Image Processing	Runs in the scanner
Imaging Features	Perfect Page Scanning; Fixed Cropping; Relative Cropping; Multi-Lingual Auto Orientation; Orthogonal Rotation; Add Border; Remove Border; Intelligent Image Edge Fill; Background Color Smoothing; Automatic Brightness/Contrast; Automatic Color Balance; Round/Rectangular Hole Fill; Sharpening; Streak Filtering; Enhanced Color Adjustment; Enhanced Color Management; Automatic Color Detection; Content or File Size Based Blank Page Removal; Fixed Thresholding; iThresholding; Lone Pixel Noise Removal; Majority Rule Noise Removal; Halftone Removal; Electronic Color Dropout (R, G, or B); Predominate (1) Color Drop Out; Multiple (up to five) Color Dropout; Dual Stream; Compression (Group 4, JPEG); Image Merge
Operator Control Panel	Color, four-line graphical LCD display with four operator control buttons
Dimensions	Height: 246 mm (9.7 in.); Width: 330 mm (13 in.); Depth: 162 mm (6.3 in.); Weight: 3.2 kg (7 lbs.)
Power Consumption	Off/Standby/Sleep mode: <0.5 watts; Running: <21 watts; Idle: < 14 watts
Environmental Factors	ENERGY STAR qualified scanners; Operating temperature: 15-35° C (59-95° F); Operating humidity: 15% to 80% RH
Acoustical Noise (operator position sound pressure level)	Off or Ready mode: <20 dB(A) Scanning: <50 dB(A)
Electrical Requirements	100-240 V (International); 50-60 Hz
Accessories (Optional)	KODAK A3 Size Flatbed Accessory, KODAK Legal Size Flatbed Accessory
Software Options	Fully supported by KODAK Capture Pro Software (Group A) and KODAK Asset Management Software, KODAK Info Input Solution
Approvals and Product Certifications	AS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark); CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark); Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B); China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark); EN55022:2010 ITE Emissions (Class B); EN55024:2010 ITE Immunity (CE mark); EN60950-1:2006 +A1,+A11,+A12 (TUV GS mark); IEC60950-1:2005 +A1; Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark); UL 60950-1:2007 R12.11 (TUV US mark); CFR 47 Part 15 (FCC Class B); Argentina S mark

KODAK SCANMATE i1180 Scanners process transactions at the speed of business.

The transformation of information capture continues. Businesses must deal with more diverse sources of information than ever before. And yet paper remains an important input source. Companies are focused on generating efficiencies where the value of information capture from paper is greatest – in business transactions.

At the same time, document capture must stay in sync with current technologies to help businesses remain efficient. Organizations are turning to web-based architectures to speed the adoption of new business applications and minimize support costs. The SCANMATE i1180 Scanner is designed to keep up with these changing technology environments.

The SCANMATE i1180 Scanner extends the concept of an intelligent device by embedding Perfect Page image enhancement technology into the device to reduce processing demands on the user’s PC, making the i1180 a PC-friendly offering.

Plus, the SCANMATE i1180 Scanner is a fully licensed device for the EMC® CAPTIVA® Cloud Toolkit, making it easy and cost effective for customers or developers using this software development kit (SDK) to write and enable browser-based capture applications.

Scan documents and capture information, extract data, and handle documents once. Benefit from an intuitive, icon-based color interface. Take advantage of associated cost savings. And that's just the beginning.

Small, quiet, quick, and intelligently designed, the SCANMATE i1180 Scanner accelerates your processes with seamless technology so you can focus on your business.
