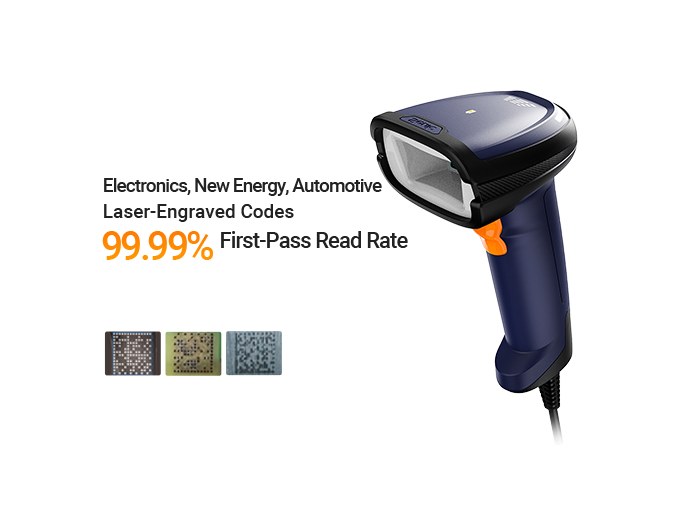

SEUIC HS305DP Wired DPM Barcode Scanner
The SEUIC HS305DP is an industrial wired DPM scanner with AI decoding for electronics, new-energy and automotive production lines.
- CategoryHandheld Barcode Scanners
- BrandSEUIC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The SEUIC HS305DP is an industrial wired DPM scanner with AI decoding for electronics, new-energy and automotive production lines. It suits retail billing counters, warehouses, manufacturing lines, healthcare and logistics desks where fast, first-time reads matter.
Buy SEUIC HS305DP from Mindware, SEUIC National Partner in India
Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.
For the best price of SEUIC HS305DP in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.
- Dual-core processor with AI algorithms for millisecond-level DPM decoding
- Reads distorted, curved-surface, dot-peen, blurred, damaged and low-contrast codes
- Adjustable diffuse lighting that switches between red, white and blue
- 1280 x 1080 global-shutter sensor at 60 fps; cross-shaped laser aimer
- Detachable plug-and-play cable; RS232, USB keyboard and USB COM
- IP54 sealing; works after 50 drops from 1.8 m; 162 g
- Seuic quotes a 99.99% first-pass read rate
| Physical Characteristics | |
|---|---|
| Image Sensor | 1280 * 1080 COMS sensor with global shutter |
| Camera Option | DPM |
| Illumination LEDs | Intelligent adjustable diffuse light (red/white/blue) |
| Aiming | Cross - shape laser aimer |
| Sensor Speed | 60fps |
| Support Symbologies | 1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Coda bar, etc. 2D: PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, etc.等 |
| Scan Angle | Pitch angle ±60° and skewangle ±55° |
| Scan Density | 1Dcode: 3mil 2Dcode: 5mil |
| Communication Interface | RS232, USB keyboard, USB COM |
| Dimension | 166.2mm(L) * 68.5mm(W) * 105.5mm(H) 6.5 in. L × 2.7 in . W × 4.2 in. H |
| Weight | 5.7oz±0.1oz / 162g±3g |
| Operating Temperature | 32 °F to 122 °F / 0°C to 50°C |
| Storage Temperature | -4 °F to 158 °F / -20°C to 70°C |
| Humidity | 5% to 95% RH non-condensing |
| Environmental Sealing | IP54 (Water and Dust Resistant) |
| Light Levels | 0 to 100,000 Lux |
| Drop Specification | Operational after 50 drops from 6 ft. (1.8 m) to concrete |
| Impact Specification | 2000 rounds of 0.5m tumble |
| Shell Material | Highly resistant industrial plastic |
| ESD Protection | ±15kV Air discharge; ±8kV direct discharge |
| Certificates | CE, FCC, RoHS |
- Authorised SEUIC sales & service partner: Mindware, national partner of SEUIC in India
- Pre-sales demo and help choosing the right model and configuration
- Device set-up, configuration and help integrating with your software
- Repairs, batteries, spares and accessories through our New Delhi service centre
- Pan-India supply for single units, bulk orders and rollouts
For sales or service, call 8527522688 or email gm@indianbarcode.com.
