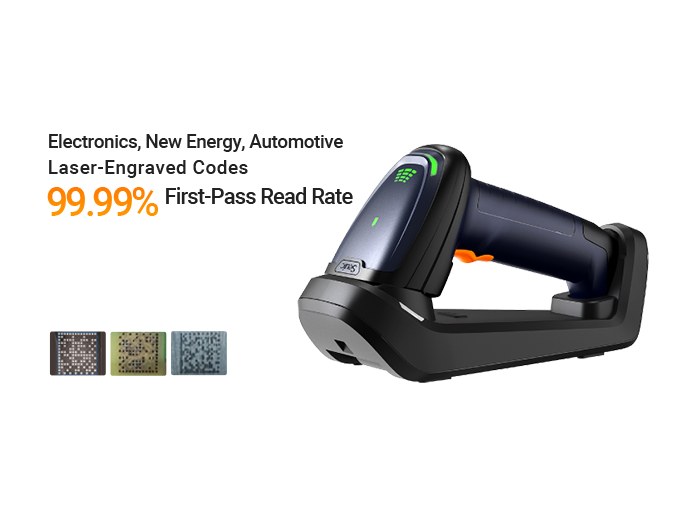

SEUIC HS325DP Wireless DPM Barcode Scanner
The SEUIC HS325DP is an industrial cordless DPM scanner with AI decoding for assembly lines and traceability.
- CategoryWireless Barcode Scanners
- BrandSEUIC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The SEUIC HS325DP is an industrial cordless DPM scanner with AI decoding for assembly lines and traceability. It suits retail billing counters, warehouses, manufacturing lines, healthcare and logistics desks where fast, first-time reads matter.
Buy SEUIC HS325DP from Mindware, SEUIC National Partner in India
Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.
For the best price of SEUIC HS325DP in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.
- Dual-core AI decoding for complex DPM, including distorted, curved and perforated codes
- Millisecond-level response; Seuic quotes a 99.99% first-pass read rate
- Adjustable diffuse lighting that switches between red, white and blue
- Wireless range of at least 100 m line-of-sight; stores up to 5,000 scans in batch mode
- Removable 3150mAh battery (3500mAh typical) rated for 100,000 continuous scans
- IP54 sealing; works after 50 drops from 1.8 m
- CE, FCC, RoHS and UN38.3 certified
| Physical Characteristics | |
|---|---|
| Image Sensor | 1080 * 1280 COMS sensor with global shutter |
| Camera Option | DPM |
| Illumination LEDs | Intelligent adjustable diffuse light (red/white/blue) |
| Aiming | Cross-shape laser aimer |
| Sensor Speed | 60 fps |
| Support Symbologies | 1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc. 2D: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, etc. |
| Scan Angle | Pitch angle ±60° and skew angle ±55° |
| Scan Density | 1D code: 3mil 2D code: 5mil |
| Radio Range | Direct line of sight in open air: Minimum 300 ft. (100.0 m) |
| Vibration Motor | Support |
| Communication Interface | RS232, USB keyboard, USB COM |
| Dimension | 166.2mm(L) * 68.5mm(W) * 105.5mm(H) |
| Weight | 7.9oz ± 0.1oz / 226g ± 3g |
| Operating Temperature | 32 °F to 122 °F / 0°C to 50°C |
| Storage Temperature | -4 °F to 158 °F / -20°C to 70°C |
| Humidity | 5% to 95% RH non-condensing |
| Environmental Sealing | IP54 (Water and Dust Resistant) |
| Light Levels | 0 to 100,000 Lux |
| Drop Specification | Operational after 50 drops from 6 ft. (1.8 m) to concrete |
| Impact Specification | 2000 rounds of 0.5m tumble |
| Shell Material | Highly resistant industrial plastic |
| Battery Capacity | Rated Capacity:3150mAh Typical Capacity: 3500mAh Removable battery |
| Number of Scans | Supports 100,000 continuous scans at a rate of 2 scans per second |
| Charge Time from Empty to Full | 6~8 hours over USB 2.5 hours over external 5V power |
| Maximum Storage in Batch Mode | 5000 |
| ESD Protection | ±15kV Air discharge, ±8kV direct discharge |
| Certificates | CE, FCC, RoHS, UN38.3 |
| Standard Cradle Specifications | |
| Normal Rated Charging Power | USB: 2.5W |
| Dimension | 219.3mm(L) * 88.4mm(W) * 62.3mm(H) |
| Weight | 179g ± 3g |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95% RH non-condensing |
| Environmental Sealing | IP51 (Water and Dust Resistant) |
| Mechanical Shock | 50 rounds of 3.9 ft. / 1.2m drops across the operating temperature range |
| Shell Material | Highly resistant industrial plastic |
| ESD Protection | ±15kV Air discharge, ±8kV direct discharge |
| Certificates | CE, FCC, RoHS |
- Authorised SEUIC sales & service partner: Mindware, national partner of SEUIC in India
- Pre-sales demo and help choosing the right model and configuration
- Device set-up, configuration and help integrating with your software
- Repairs, batteries, spares and accessories through our New Delhi service centre
- Pan-India supply for single units, bulk orders and rollouts
For sales or service, call 8527522688 or email gm@indianbarcode.com.
