SEUIC AUTOID UF2 Integrated UHF RFID Reader
The SEUIC AUTOID UF2 is a low-power all-in-one UHF RFID reader with integrated antenna, in several range options.
- CategoryRFID System
- BrandSEUIC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The SEUIC AUTOID UF2 is a low-power all-in-one UHF RFID reader with integrated antenna, in several range options. It is used for asset tracking, apparel and retail inventory, warehouse and yard management, and any operation that needs to count many tagged items quickly and accurately.
Buy SEUIC AUTOID UF2 from Mindware, SEUIC National Partner in India
Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.
For the best price of SEUIC AUTOID UF2 in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.

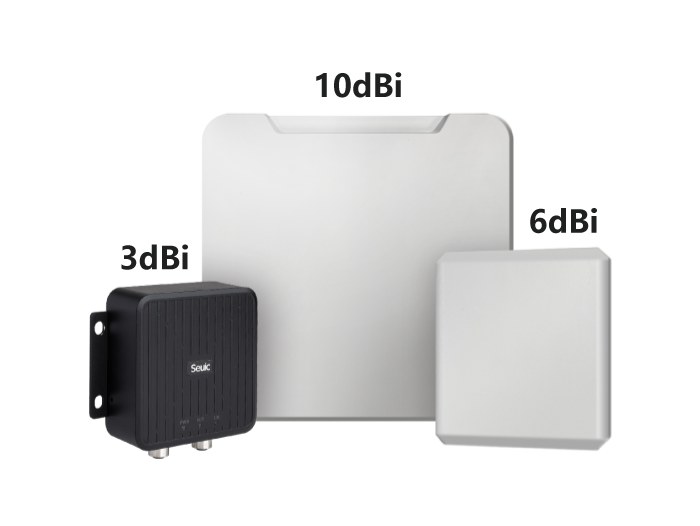

- Integrated circularly polarised antenna: 3 dBi, 6 dBi or 10 dBi versions
- Read range over 2 m (3 dBi) or over 4 m (6 dBi) with H47 tags
- EPC C1 GEN2 / ISO18000-6C; 10-30 dBm adjustable output
- Ethernet as standard; CAN, RS232 or RS485 optional
- Two M12 industrial connectors; 2-in / 2-out optocoupler-isolated GPIO
- IP67 (3 dBi) or IP65 (6/10 dBi); -20 °C to +50 °C operation
- Suited to logistics and production-control applications
| Physical and Environment Parameters | |
|---|---|
| System | STM32 |
| RAM | 192K Byte |
| ROM | 1M Byte |
| Interface / Communication | Default network port (10/100M adaptive speed) Optional CAN Optional RS232 (rate 115.2Kbit/s) Optional RS485 (half duplex) |
| Power Supply | 12V DC |
| Interface | M12 industrial interface * 2 Including power supply, GPIO and communication interfaces |
| Input and Output | By default, 2-in 2-out optocoupler isolated GPIO, compatible with 5-24V level Support GPIO customization |
| Notification Method | Buzzer, LED indicator |
| Size | 3dBi:95 * 95 * 36mm 6dBi:131 * 131 * 51.4mm 10dBi:305 * 305 * 81.7mm |
| Weight | 350g / 1800g (different according to different configurations) |
| Working Temperature | -4°F / -20 °C to +122°F / +50 °C |
| Storage Temperature | -40°F / -40 °C to +185°F / +85 °C |
| Humidity | 5% to 95% RH non-condensing |
| Waterproof and Dustproof Industrial Grade | 3dBi: IP67 6dBi / 10dBi: IP65 |
| Seismic Resistance | Vibration amplitude: 2cm Vibration frequency: 1~10Hz Vibration direction: up, down, left, right and random |
| Electrostatic Discharge(ESD) | ± 8kV contact discharge |
| RFID Performance Parameters | |
| Tag Protocol | EPC C1 GEN2 / ISO18000-6C |
| Working Frequency | Default: 920MHz - 925MHz (China) 860Mhz - 960Mhz (it can be adjusted according to the requirements of different countries or regions) |
| Work Mode | Default random frequency hopping, support fixed frequency |
| Output Power | 10-30dBm adjustable, step power 1dB |
| Antenna Gain | 3dbiC / 6dbiC / 10dbiC(circular polarization) |
| Read Distance | 3dBi: >2m (H47 tag), the actual distance is related to the tag and environment 6dBi: >4m (H47 tag), the actual distance is related to the tag and environment 10dBi: >7m (H47 tag), the actual distance is related to the tag and environment |
| Write Distance | 3dBi: 0-1m (H47 tag), the actual distance is related to the tag and environment 6dBi: 0-3m (H47 tag), the actual distance is related to the tag and environment 10dBi: 0-7m (H47 tag), the actual distance is related to the tag and environment |
| Third Party Application Development Support | |
| Upper Computer Software | Windows |
| System Programming Environment | VS2015 |
