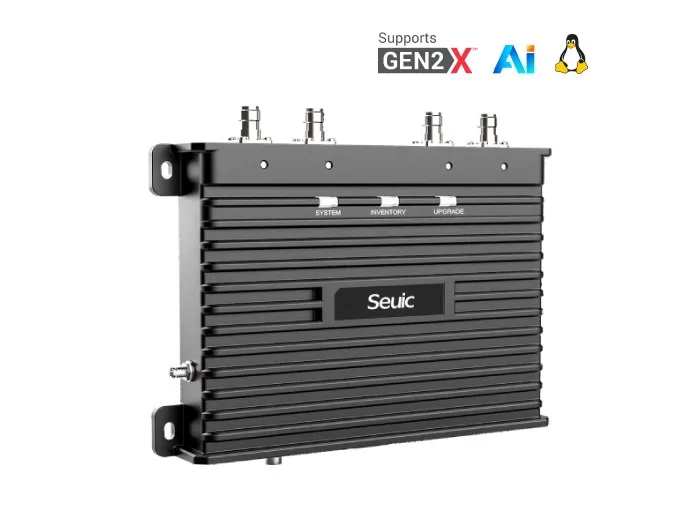

SEUIC AUTOID UF40 Linux AI Fixed UHF RFID Reader

Model: AUTOID UF40 Linux AI

The SEUIC AUTOID UF40 Linux AI is an AI-powered 4-port fixed UHF RFID reader with smart commissioning for large deployments.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryRFID System

BrandSEUIC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

The SEUIC AUTOID UF40 Linux AI is an AI-powered 4-port fixed UHF RFID reader with smart commissioning for large deployments. It is used for asset tracking, apparel and retail inventory, warehouse and yard management, and any operation that needs to count many tagged items quickly and accurately.

Buy SEUIC AUTOID UF40 Linux AI from Mindware, SEUIC National Partner in India

Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.

For the best price of SEUIC AUTOID UF40 Linux AI in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.

Smart networking and commissioning that simplify multi-device deployment
DeepSeek LLM integration for troubleshooting help; online firmware upgrades
EPC Class1 Gen2 / Gen2X / ISO18000-6C; up to 1,300 tags per second
Read range over 10 m (30 dBm, 9 dBiC antenna); 1-33 dBm output
Quad-core Cortex-A53 2.0GHz, Linux 5.4, 2GB + 32GB
Four RP-TNC antenna ports, RJ45, RS232, 2 x USB-A, GPIO and dual-band Wi-Fi
Power from 12-48 VDC or PoE; IP54

Performance Characteristics
Code Support	EPC Class1 Gen2 / EPC Class1 Gen2X / ISO18000 - 6C
Working frequency	860MHz - 930MHz (adjustable according to different national or regional requirements)
Output Power Range	1-33dBm adjustable
Power Adjustment Step	1dB
Maximum Reading Rate	Up to 1300 tags / second
Reading Distance	>10m (30dbm, 9662 white card, outdoor open environment, 9dBiC circularly polarized antenna)
Writing Performance	＞5m (30dbm, 9662 white card, outdoor open environment, 9dBiC circularly polarized antenna)
CPU	Cortex ™ - A53 Quad core 2.0 GHz
Operating System	Linux 5.4
Storage	2GB + 32GB
Communication Protocol	TCP/IP, RS232, WIFI (2.4G / 5G dual - band, IEEE802.11 a/b/g/n/ac)
Max Receive Sensitivity	-87dBm (Gen2 protocol) -93dBm (Gen2X protocol)
Power Supply	12 - 48VDC, standard adapter 24V/2A, supports POE power supply
Power Consumption	Maximum 1.2A
Power Consumption	≤1.5A (24V power supply)
Temperature	Operating temperature: -20℃ to +60℃ Storage temperature: -25℃ to +80℃ Operating humidity: 5%～95%RH, non - condensing
Sealing Grade	IP54
Dimension	230(L) × 150(W) × 32(T)mm
Weight	≤1160g (bare machine) ≤1850g (packaged)
Interface Definition
Power Supply	1*DC JACK
USB Interface	USB interface*2 (USB-A)
TCP/IP Network Interface	1 * RJ45
System Reset Button	1 *
Serial Communication Interface	1 * RS232 (DB9 Female)
Debug/Download USB Interface	1 * Micro USB
Antenna Interfaces	RP-TNC * 4, ANT1 ~ ANT4 (RP-TNC Female)
WIFI	1 * (SMA Female)
General Purpose Input/Output Interfaces	GPIO * 2
