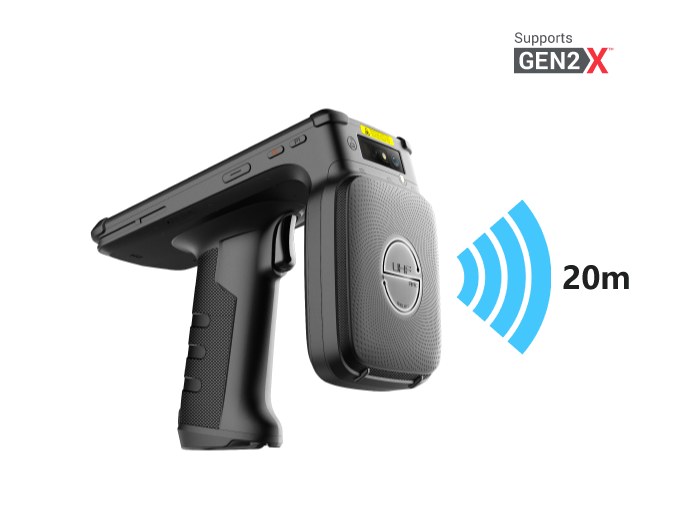

SEUIC AUTOID UTouch 2-20 UHF RFID Handheld Reader
The SEUIC AUTOID UTouch 2-20 is an ultra-rugged pistol-grip UHF RFID handheld reader for bulk tag capture at up to 20 m.
Interested in this product?
Request a quote
Tell us the quantity and delivery city, and we'll reply within working hours.
- CategoryRFID System
- BrandSEUIC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The SEUIC AUTOID UTouch 2-20 is an ultra-rugged pistol-grip UHF RFID handheld reader for bulk tag capture at up to 20 m. It is used for asset tracking, apparel and retail inventory, warehouse and yard management, and any operation that needs to count many tagged items quickly and accurately.
Buy SEUIC AUTOID UTouch 2-20 from Mindware, SEUIC National Partner in India
Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.
For the best price of SEUIC AUTOID UTouch 2-20 in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.
- UHF RFID (ISO-18000-6C / EPC C1G2), 1-33 dBm output, 5 dBi circularly polarised antenna
- Reads tags at 10 m or more (Impinj H47) and up to 1,300 tags per second
- Replaceable batteries totalling at least 11,700mAh (5000mAh main unit + 6700mAh handle)
- IP67 sealing and multiple 2 m drops
- Octa-core 2.0GHz, Android 14 (upgradeable to Android 18); up to 8GB / 128GB
- 5.5-inch touchscreen, 2D imager and HF/NFC reading
- Dual-band Wi-Fi 6-ready WLAN and GPS/GLONASS/BeiDou
| Physical Characteristics | |
|---|---|
| Dimensions | 6.7in.L x 3.1 in.W x 5.2in.T (0.6in.) 170mmLx80mmWx132.7mmT (16.4mm) |
| Weight | 22.2 oz. / 630 g with battery |
| Display | 5.5 in. display with capacitive touch, 1440(H)×720(W) |
| Power | ≧11700mAh (Main unit 5000mAH + Handle 6700mAh replaceable) Bottom Type C USB port, support QC3.0 fast charging, intelligent recognition of PC and charger |
| SIM Card Slot | SIM+TF |
| Expansion Slot | Micro SD Card, compatible up to 256GB |
| Interface / Communication | Waterproof Type C USB interface, support USB2.0 HighSpeed, support OTG |
| Notifications | Sound, vibration, LED indicator light |
| Buttons | Power + Volume (+, -) + UHF + SCAN + Custom + On / Off button |
| Voice and Audio | Built-in single speaker, built-in dual microphones (with noise cancellation) |
| Performance Characteristics | |
| CPU | Octa core 2.0GHz |
| Operating System | Android 14.0, with support for future upgrade to Android 18.0 |
| Memory | 4GB RAM /64 GB Flash memory (optional 6GB+64GB/ 8GB+128GB) |
| User Environment | |
| Operating Temp. | -4℉ / -20°C to +122℉ / +50°C |
| Storage Temp. | -40℉/-40°C to +140℉/+60°C(include battery) -40℉/-40°C to +158℉/+70°C(no battery) |
| Humidity | 5% to 95%, non-condensing |
| Drop Spec. | Multiple drops from 6.6 ft./2.0 m |
| Sealing | IP67 |
| Electrostatic Discharge (ESD) | ±15kV Air discharge, ±8kV direct discharge |
| Sensor | G-sensor, light sensor, distance sensor, electronic compass, gyroscope |
| Data Capture | |
| Scanning | Standard range 2D imager scan engine |
| Front Camera | Fixed focus. 5MP |
| Rear Camera | Auto-focus, 13 MP, support double flashlights, PDAF phase focusing |
| RFID Read / Write (NFC) (Special Order Option Only) | |
| Read-write tag | Support ISO15693, ISO14443A/B (without encryption protocol), and support NFC protocol |
| Frequency | HF Frequency 13.56MHz |
| Reading distance | ISO15693 typical value >5cm, ISO14443A typical value >4cm, ISO14443B typical value >1.5cm (label related) |
| RFID Read/Write(UHF)- Standard Configuration | |
| Read-write tag | Conforms to ISO-18000-6C/EPCC1G2 |
| Antenna Parameter | 5dBi circular polarization, default 902-928MHz |
| Frequency | 840-960 MHz (customized according to country's regional regulations), default 902-928 MHz |
| Operation Mode | Operates as a frequency hopping spread spectrum (FHSS) or fixed frequency transmission mode |
| Output Power | 1~33dBm |
| Reading Distance | ≥10m @impinj H47 (practical distance subject to label and environment) |
| Writing Distance | 0-6m@9662 white card (practical distance subject to label and environment) |
| Group Reading Speed | Achieve 1300 frames/sec @impinjH47 (practical distance subject to label and environment) |
| Reading Rate | 12 ms per separate character (32bits) on average |
| Writing Rate | 60 ms per separate character (32bits) on average |
| Power Consumption | less than 8W (average) |
| GPS Location information collection | |
| Positioning System | GPS+GLONASS+Beidou, support AGPS |
| Frequency | GPS: L1/L5 Beidou: B1 GLONASS: L1/L5 |
| Accuracy | 5-10meter (OPEN SKY) |
| Wireless Connectivity | |
| WLAN-Protocol | IEEE 802.11a/b/g/n/ac/ax-ready |
| WLAN-Frequency Range | Depending on the country (region), 2.4GHz is 2.412GHz-2.472GHz; 5GHz is 5.170GHz-5.825GHz |
- Authorised SEUIC sales & service partner: Mindware, national partner of SEUIC in India
- Pre-sales demo and help choosing the right model and configuration
- Device set-up, configuration and help integrating with your software
- Repairs, batteries, spares and accessories through our New Delhi service centre
- Pan-India supply for single units, bulk orders and rollouts
For sales or service, call 8527522688 or email gm@indianbarcode.com.
