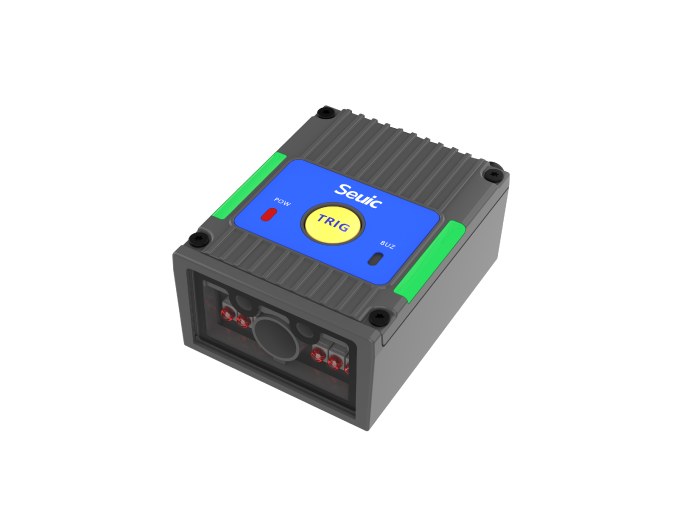

SEUIC X3G Fixed 2D Barcode Scanner

Model: X3G

The SEUIC X3G is a compact plug-and-play fixed 2D scanner for semi-automated capture and self-service terminals.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryFixed Industrial Scanners

BrandSEUIC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

The SEUIC X3G is a compact plug-and-play fixed 2D scanner for semi-automated capture and self-service terminals. It fits production and packaging lines, traceability stations, conveyors, kiosks and self-service terminals where codes must be read automatically and reliably.

Buy SEUIC X3G from Mindware, SEUIC National Partner in India

Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.

For the best price of SEUIC X3G in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.

High-sensitivity 1280 x 800 global-shutter imager at up to 60 fps
Reads codes on parts, packaging, tickets and screens, in any orientation
Manual, presentation, continuous and serial-command trigger modes
Resolves 3.3 mil 1D and 5 mil 2D codes; 46° x 29° field of view
Very small 40 x 50.3 x 23 mm body weighing about 34 g
USB and RS-232 interfaces; IP54; aluminium alloy + ABS housing

Specifications
Image Sensors	1280 * 800 COMS sensor with global shutter
Light Source	High-intensity red LED
Aimer	Red linear collimator
Image Frame	Maximum 60fps
Code Support	1D: All the standard 1D barcode 2D: DataMatrix(ECC200), QR code, Micro QR, PDF417, MicroPDF417, Aztec etc.
Rotate	Omnidirectional barcoding reading
Accuracy	1D: 3.3mil 2D: 5.0mil
Standard Range for Typical Symbols-HD	3.3mil Code 39: 40mm ~ 80mm 10mil Code 39: 50mm ~ 150mm 10mil Datamatrix: 30mm ~ 130mm ENA-13 100%: 30mm ~ 165mm
Standard Range for Typical Symbols-SR	10mil Code 39: 50mm ~ 200mm 10mil Datamatrix: 35mm ~ 250mm ENA-13 100%: 30mm ~ 300mm
Field of View	46° horizontal, 29° vertical
Trigger Mode	Manual trigger, presentation mode, continuous trigger mode, serial port command
Print Contrast	≥30%
Communication Interface	USB, RS-232
Dimension	40mm x 50.3mm x 23mm
Weight	About 34g
Operating Temperature	0℃ to 50℃
Storage Temperature	-20℃ to 70℃
Humidity	5% to 95% RH non-condensing
Environmental Sealing	IP54
Shell Material	Aluminium alloy+ABS
Power	DC 5V±5%; 300 mA ±5% (Typical), 450 mA ±5% (Maximum)

Authorised SEUIC sales & service partner: Mindware, national partner of SEUIC in India
Pre-sales demo and help choosing the right model and configuration
Device set-up, configuration and help integrating with your software
Repairs, batteries, spares and accessories through our New Delhi service centre
Pan-India supply for single units, bulk orders and rollouts

For sales or service, call 8527522688 or email gm@indianbarcode.com.
