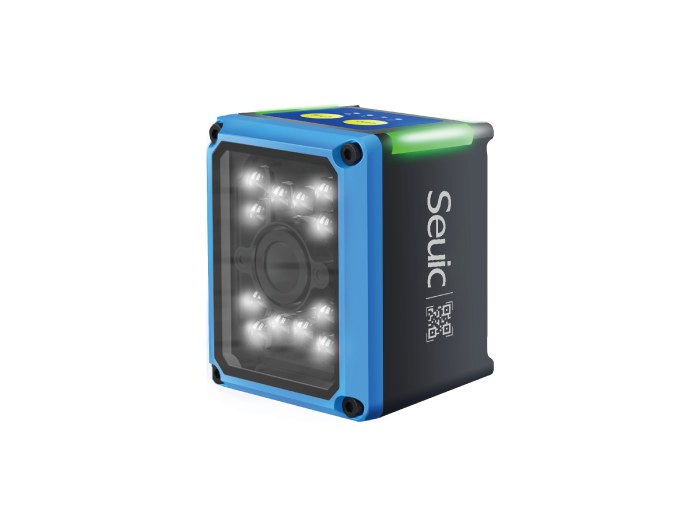

SEUIC X4 AI Fixed Industrial Code Reader

Model: X4 AI

The SEUIC X4 AI is a 1.3MP AI smart fixed code reader that sets itself up automatically in about one second.

Interested in this product? Request a quote Tell us the quantity and delivery city, and we'll reply within working hours.

Call for a quote WhatsApp Email

CategoryFixed Industrial Scanners

BrandSEUIC

AvailabilityAvailable on order

Sourced through authorised channels

Set-up & service by our engineers

Shipped anywhere in India

The SEUIC X4 AI is a 1.3MP AI smart fixed code reader that sets itself up automatically in about one second. It fits production and packaging lines, traceability stations, conveyors, kiosks and self-service terminals where codes must be read automatically and reliably.

Buy SEUIC X4 AI from Mindware, SEUIC National Partner in India

Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.

For the best price of SEUIC X4 AI in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.

Next-generation AI chip and decoding algorithms with automatic parameter optimisation
Reads blurred, distorted and low-contrast codes; resolves 3.3 mil 1D and 2.0 mil 2D
Adjustable focus: 50-1000 mm (X4 AI) or 50-500 mm (X4W AI wide view)
Industrial Ethernet protocols: Profinet, EtherNet/IP, Modbus TCP, MELSEC, FINS, TCP/UDP, FTP
2 inputs and 3 optocoupler outputs; USB 2.0
IP67 enclosure; 10-30 V DC; about 220 g
For 3C electronics, new energy, automotive and food & beverage lines

Receiver
Sensor	CMOS Image Sensor with global shutter
Number of Pixels	1.3M, 1280 x 1024
Light Emitter
Light Source	High-intensity red LED or white LED
Aimer	Laser dual-point positioning aimer Class II
Focus Adjustment
Focus Adjustment	X4 AI (Standard): 50mm to 1000mm adjustable X4W AI (Wide View): 50mm to 500mm adjustable
Reading Specifications
Supported Symbol	1D: Code128, GS1 128, Code39, Code93, codabar, Interleaved 2 of 5, EAN/UPC 2D: QR, DataMatrix (ECC200), PDF417, Micro PDF417
Minimum Resolution	1D: 3.3mil 2D: 2.0mil
I/O Specifications
Control Input	Points: 2 Input type: Bidirectional voltage input Maximum rating: 30V Minimum ON voltage: ＜4V Maximum OFF current: 0.001A
Control Output	Points: 3 Output type: 3 optocoupler output Maximum rating: 30V Minimum load current: 1output: 50mA or less, 3-output total: 100mA or less Leakage current when OFF: 0.1mA or less Residual voltage when ON: 1V or less
Ethernet	Supported protocol: TCP/UDP TCP Client, TCP Server, FTP, Profinet, MELSEC, Ethernet/IP, ModBusTcp(poll/slave), Fins
USB	Communication standard: USB 2.0 Full Speed compliant
Environmental Resistance
Enclosure Rating	IP67
Ambient Temperature	0° ~ 50°C
Ambient Storage Temperature	-20°C ~70°C
Relative Humidity	5% to 95% RH (No condensation)
Storage Ambient Humidity	5% to 95% RH (No condensation)
Ambient Light	0~10000 lux
Operating Environment	No dust or corrosive gas present
Rating
Power Supply Voltage	10~30V DC
Current Consumption	0.5 ~ 1.5A
Weight
Weight	Approx.220g
Dimensions
Dimensions (L x W x H)	61.2mm x 48.7mm x 45.55mm

Authorised SEUIC sales & service partner: Mindware, national partner of SEUIC in India
Pre-sales demo and help choosing the right model and configuration
Device set-up, configuration and help integrating with your software
Repairs, batteries, spares and accessories through our New Delhi service centre
Pan-India supply for single units, bulk orders and rollouts

For sales or service, call 8527522688 or email gm@indianbarcode.com.
