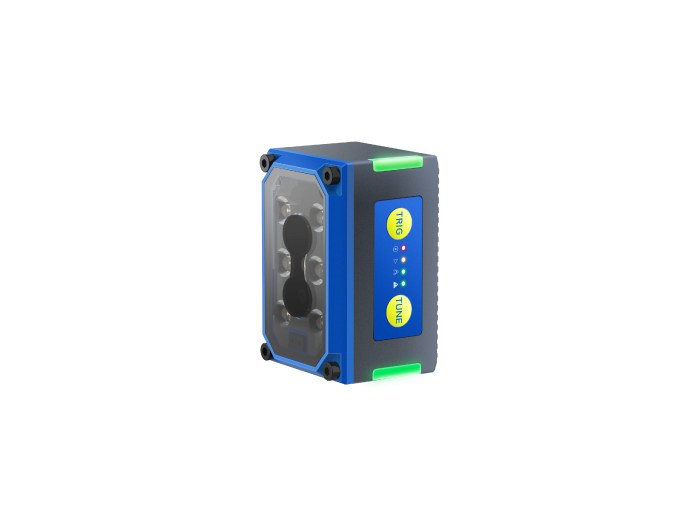

SEUIC X5mini Compact Fixed Industrial Barcode Reader
The SEUIC X5mini is a very compact industrial fixed barcode reader with dual lenses for tight spaces.
- CategoryFixed Industrial Scanners
- BrandSEUIC
- AvailabilityAvailable on order
- Sourced through authorised channels
- Set-up & service by our engineers
- Shipped anywhere in India
The SEUIC X5mini is a very compact industrial fixed barcode reader with dual lenses for tight spaces. It fits production and packaging lines, traceability stations, conveyors, kiosks and self-service terminals where codes must be read automatically and reliably.
Buy SEUIC X5mini from Mindware, SEUIC National Partner in India
Mindware (Indian Barcodes) is the national partner of SEUIC in India. As importers and distributors of the full SEUIC range, we supply genuine SEUIC products across India and back them with our own sales and service team in New Delhi, from demos and set-up to repairs and spares.
For the best price of SEUIC X5mini in India, bulk orders or a demo, call 8527522688 or email gm@indianbarcode.com.
- Dual near and mid-to-long range prime lenses with smart switching (3-35 cm depth of field)
- 1.3MP global-shutter sensor with red and blue lighting for tiny, low-contrast and metal codes
- 55 x 35 x 32 mm body weighing about 133 g, for easy integration
- Industrial Ethernet protocols: Profinet, EtherNet/IP, Modbus TCP, MELSEC, FINS, TCP client/server
- 2 inputs and 2 optocoupler outputs; USB 2.0
- IP65 enclosure; 10-30 V DC
- For SMT lines, automation equipment and test fixtures
| Receiver | |
|---|---|
| Sensor | CMOS Image Sensor with global shutter |
| Number of Pixels | 1.3M, 1080x1280 |
| Light Emitter | |
| Light Source | High-intensity red LED and blue LED |
| Aimer | Laser positioning aimer |
| Focus Adjustment | |
| Focus Adjustment | Dual Prime lens |
| Reading Specifications | |
| Minimum Resolution | 1D: 3.3mil 2D: 5.0mil |
| I/O Specifications | |
| Control Input | Points: 2 Input type: Bidirectional voltage input Maximum rating: 30V Minimum ON voltage: <4V Maximum OFF current: 0.001A |
| Control Output | Points: 2 Output type: 2 optocoupler output Maximum rating: 30V Minimum load current: 1output: 50mA or less, 3-output total: 100mA or less Leakage current when OFF: 0.1mA or less Residual voltage when ON: 1V or less |
| Ethernet | Supported protocol: TCP Client, TCP Server, Profinet, MELSEC, Ethernet/IP, Mod Bus Tcp (poll/slave), Fins |
| USB | Communication standard: USB2.0 Full Speed compliant |
| Environmental Resistance | |
| Enclosure Rating | IP65 |
| Ambient Temperature | 0° to 50°C |
| Ambient Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5 to 95% RH (No condensation) |
| Storage Ambient Humidity | 5 to 95% RH (No condensation) |
| Ambient Light | 0 to 10000 lux |
| Operating Environment | No dust or corrosive gas present |
| Rating | |
| Power Supply Voltage | 10 to 30V DC |
| Current Consumption | 0.5 to 1.5A |
| Weight | |
| Weight | Approx. 133 ± 5g |
| Dimensions | |
| Dimensions (L x W x H) | 55mm x 35mm x 32mm |
